Name: Adapter, 24VDC, 3.75A, 90W, 80~264VAC, 5.5x2.5mm, switched-mode, GSM90B24-P1M
Brand: MEAN WELL
SKU: 146271
Price: 61.79 EUR
Availability: OutOfStock

Desktop Power Supply 24V, switched-mode type, GSM90B24-P1M

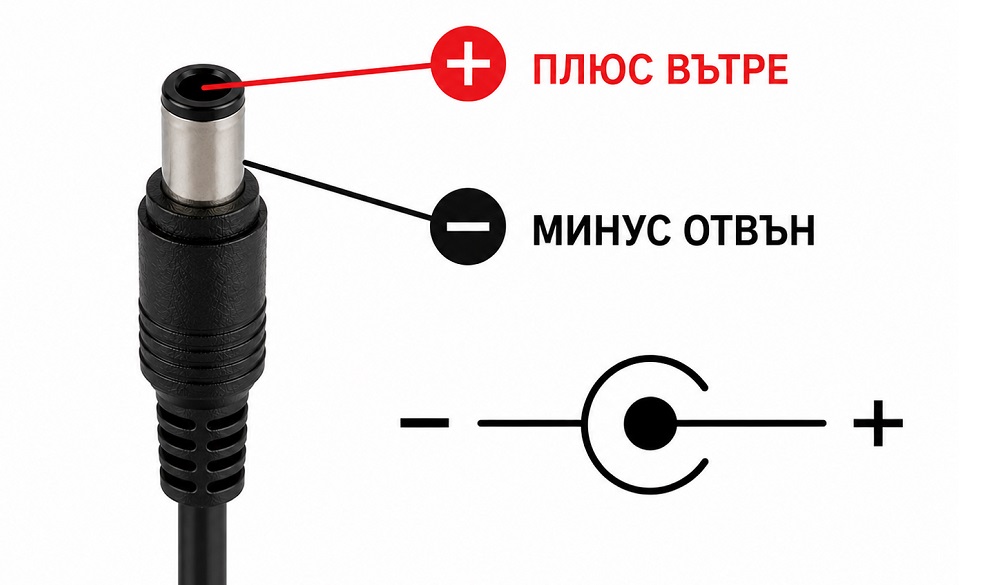

Desktop power supply, with output voltage of 24V, input voltage 80~264V, connectors 5.5x2.5mm (Universal), switched-mode type , with size of 145x60x32mm, model GSM90B24-P1M. Socket polarity - plus inside, minus outside.

Manufacturer:

MEAN WELL

Model:

GSM90B24-P1M

Individual Warranty:

24 months

Company Waranty:

24 months

Weight:

0.484 Kgs

Availability

Upon request

On site in Vikiwat shop

the price on site may be different

out of stock

Add the product in your request cart with the desired quantity. After sending the list of products on request, our employee will contact you to specify delivery and payment details.

€ 61.79 / 120.85 лв

Notify me when available Close

SKU: 146271

Universal adapter

To properly select the power of the device, it is advisable to consult a specialist. The power must be based on the power of the consumers and the type of load:

The nominal power of the device must be 20-30% higher than the load capacity of the consumer at an active load (heaters, electric ovens, furnaces, stoves, incandescent lamps, etc.). This is due to the high starting current of the loads. When the load is switched on and during repeated short-time modes, the load over a short period significantly exceeds the nominal parameters specified in the load characteristics.

When the device is used in conjunction with inductive load consumers, the power must be 3 to 5 times the power consumption of the load! (fluorescent lighting, electric motors, pumps, air conditioners, refrigerators and freezers, etc.).

When the device is used for consumers with a capacitive load, the selected power must be 5 to 10 times greater than the power consumption of the load! (pulse chargers, LED drivers, pulse power supplies, etc.).

If these instructions are not complied with, it is possible for the device to be overloaded and stop functioning, and the warranty will not cover the damage.

Adapter, 24VDC, 3.75A, 90W, 80~264VAC, 5.5x2.5mm, switched-mode, GSM90B24-P1M

Universal adapter

Technical parameters of Adapter, 24VDC, 3.75A, 90W, 80~264VAC, 5.5x2.5mm, switched-mode, GSM90B24-P1M

Technical documentation of Adapter, 24VDC, 3.75A, 90W, 80~264VAC, 5.5x2.5mm, switched-mode, GSM90B24-P1M
