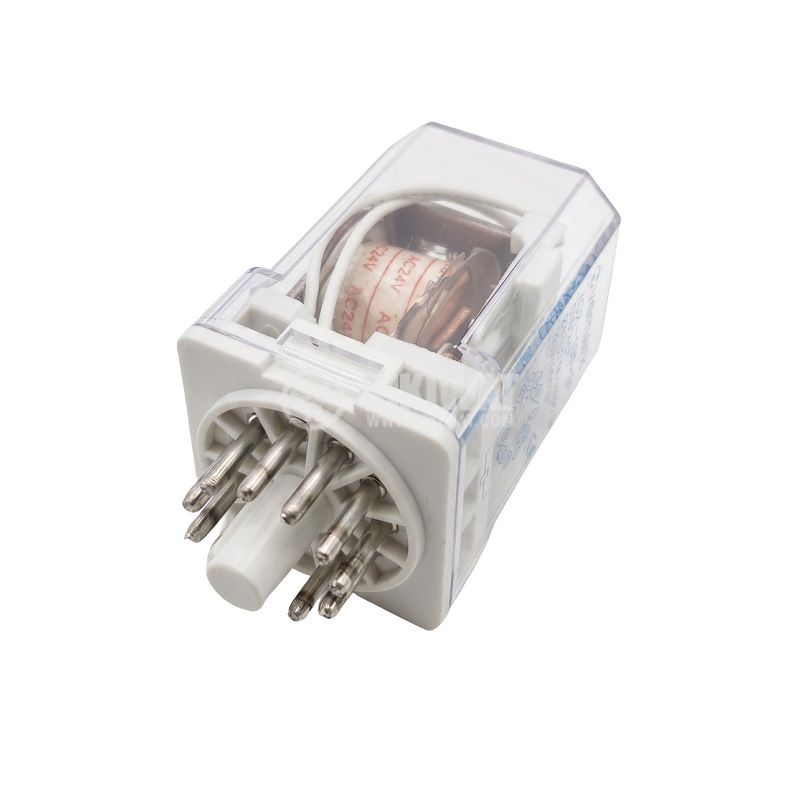

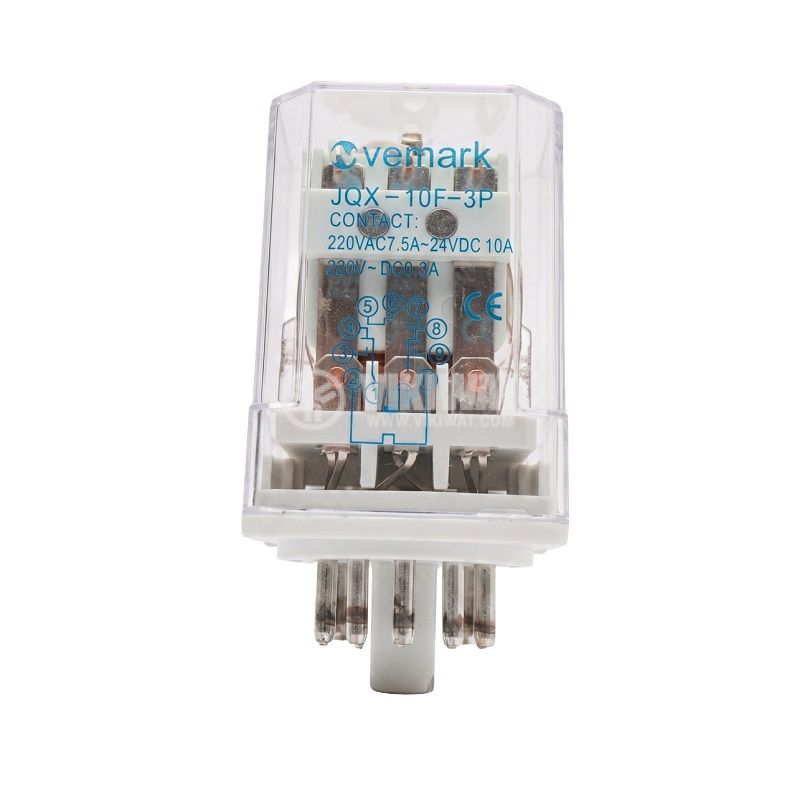

Electromechanical Relay universal JQX-10F coil 24VAC 250VAC/10A 3PDT - 3NO + 3NC

Electromechanical Relay universal JQX-10F coil 24VAC 250VAC/10A 3PDT - 3NO + 3NC - 2

Electromechanical Relay universal JQX-10F coil 24VAC 250VAC/10A 3PDT - 3NO + 3NC - 3

Rate this product

Universal Electromagnetic Relay 24 VAC 250 VAC / 10 A 3PDT 3NO+3NC JQX-10F.

Manufacturer:

ALION

Weight:

0.090 Kgs

Availability

Qty

Delivery time

In Stock

220

48 h

With delivery time

3 days

Vikiwat Store

shop purchase

In stock

BGN 7.90 VAT Incl.

Prices for quantities

Quantity	1+	3+	5+	10+	25+
List Price	BGN 7.90 VAT Incl.	BGN 7.50 VAT Incl.	BGN 7.11 VAT Incl.	BGN 6.71 VAT Incl.	BGN 6.32 VAT Incl.

SKU: 51080

Electromagnetic relay

model - JQX-10F;
nominal coil voltage - 24 VAC;
nominal voltage of the contact system - 250 VAC;
capacity of the contacts - 10 A 250 VAC;
configuration of contacts - SPDT - 3NO + 3NC;
number of pins, feathers - 11;
compatible sockets - PF113A, PF113A-E, PL11;
coil power - <2.5 VA;
installation - plinth;
contact resistance - <50 mOhm;
insulation resistance -> 100 MOhm / 500 VDC;
electrical endurance of contacts - 100,000 times;
dielectric strength between open contacts - 1000 V rms / per 1 min;
dielectric strength between coil and contacts - 1500 V rms / per 1 min;
operating temperature - from -40 ° C to + 55 ° C;
dimensions - 34.5 x 34.5 x 52 mm;
analogs - OMRON MK2P, MK3PH, K FRM5.

Technical parameters of Electromechanical Relay universal JQX-10F coil 24VAC 250VAC/10A 3PDT - 3NO + 3NC

Brand:

ALION

Coil voltage:

24 [VAC]

Contacts maximum current:

10 [A]

Socket rated voltage:

250 [VAC]

Contacts configuration:

SPDT

Sockets:

3xNO+3xNC

Number of leads:

10 [leads]

Mounting:

socket

Operating temperature:

-40~55 [°C]

Model:

JQX-10F

Dimensions:

52x35x35 [mm]

Relay type:

electromagnetic
