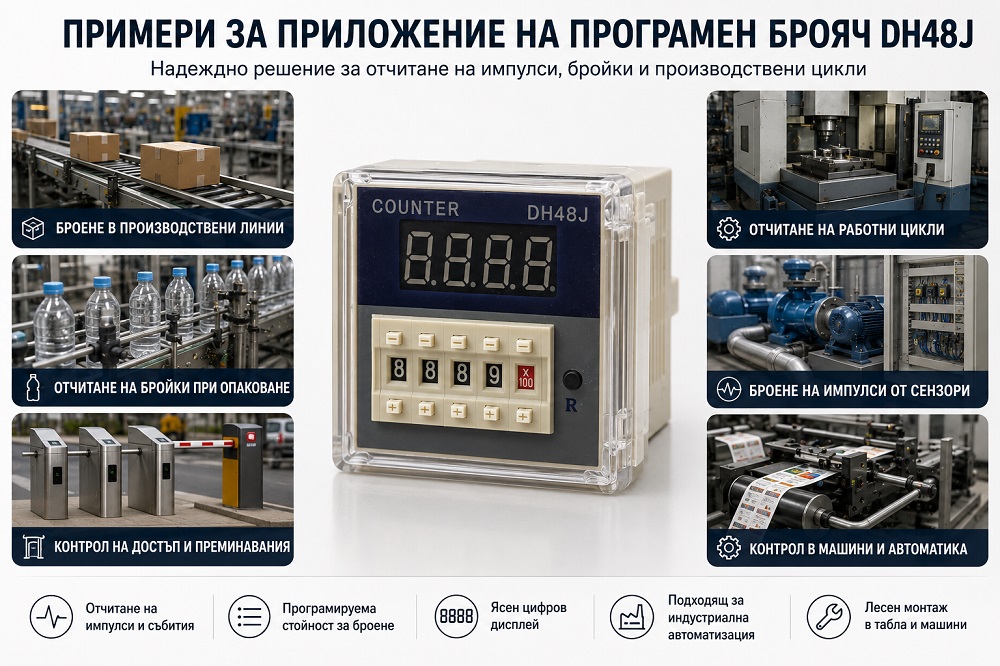

Programmable Impulse Counter, DH48J, 24 VDC, 4-digit, 1-999900, NC + NO, 8 pin

Programmable Impulse Counter, DH48J, 24 VDC, 4-digit, 1-9999, NC + NO, 8 pin - 1

Programmable Impulse Counter, DH48J, 24 VDC, 4-digit, 1-9999, NC + NO, 8 pin - 2

Programmable Impulse Counter, DH48J, 24 VDC, 4-digit, 1-9999 - 3

DH48J - 4

DH48J - 5

Programmable Impulse Counter, DH48J, 24 VDC, 4-digit, 1-9999, NC + NO, 8 pin - 1

Programmable Impulse Counter, DH48J, 24 VDC, 4-digit, 1-9999, NC + NO, 8 pin - 2

Programmable Impulse Counter, DH48J, 24 VDC, 4-digit, 1-9999 - 3

DH48J - 4

DH48J - 5

The device is designed for use in production process automation systems. It operates in the collection mode, from 1 to 999900 pulses, mechanical switch can be connected to the input. The assignment is done with BCD encoder and multiplier, NO contact is reached when the set value is reached.

Manufacturer:

VEMARK

Model:

DH48J

Individual Warranty:

24 months

Company Waranty:

12 months

Weight:

0.275 Kgs

Availability

Out of stock online

On site in Vikiwat shop

the price on site may be different

out of stock

Possible speedy APS

€ 17.55 / 34.32 лв

Notify me when available Close

Notify me when the product is available

SKU: 31407

Description Specifications Files Reviews

Report an error

Description

Programmable digital pulse counter

maximum working range - 1 - 999900 pulses;
set-up - BCD encoder set-up;
input - Mechanical contact;
counting speed - max 30 pulses / s .;
reset mode - RESET (electronic or mechanical);
electrical contact durability - up to 100,000 times;
operating environment temperature - -5 ° C to + 40 ° C;
power consumed - <3 W;

Additional information

The device has built-in and external mechanical RESET.

Specifications

Technical parameters of Programmable Impulse Counter, DH48J, 24 VDC, 4-digit, 1-999900, NC + NO, 8 pin

Brand:

VEMARK

Measured quantity:

impulses

Counter kind:

programmable

Supply voltage:

24 [VDC]

Counter range:

1 to 999 999 impulses

Input kind:

mechanical contact

Reset method:

mechanical/electronic

Display:

LCD 4 digits

Counter type:

electronic

Dimensions:

48x48x96 [mm]

Contacts configuration:

SPDT

Model:

DH48J

Contacts load capacity at resistive load:

5A / 250VAC

Sockets:

NO+NC

Files

Technical documentation of Programmable Impulse Counter, DH48J, 24 VDC, 4-digit, 1-999900, NC + NO, 8 pin

User manual (BG) PDF, 387.2 KB
