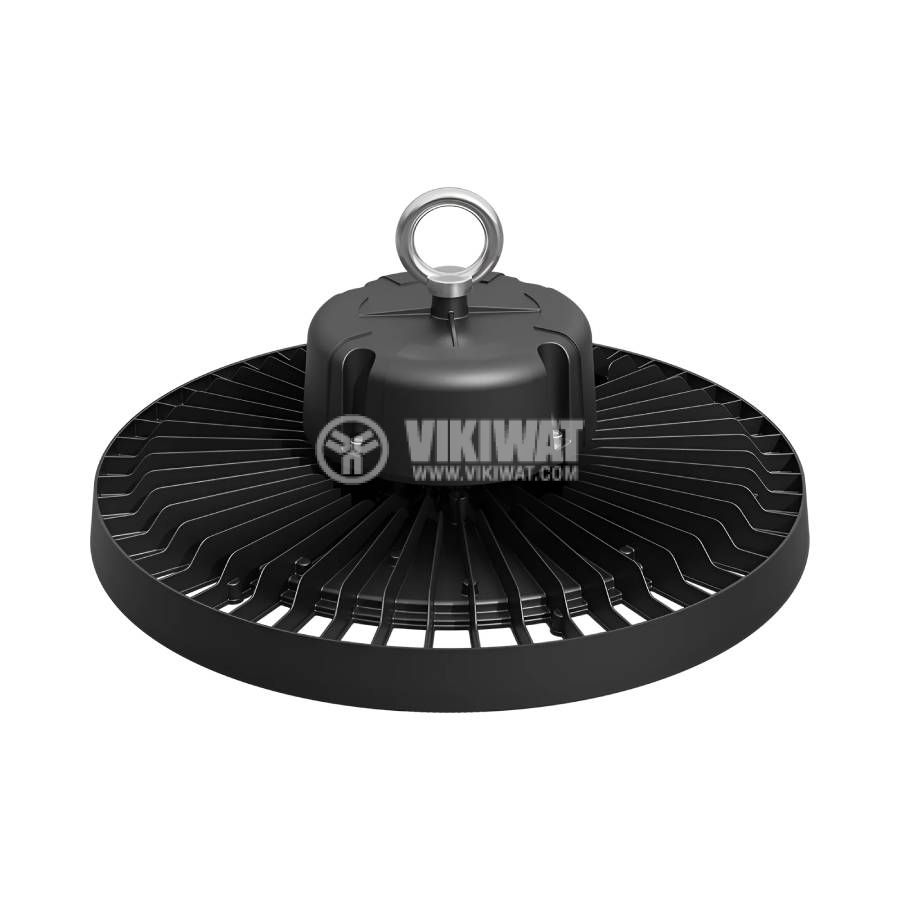

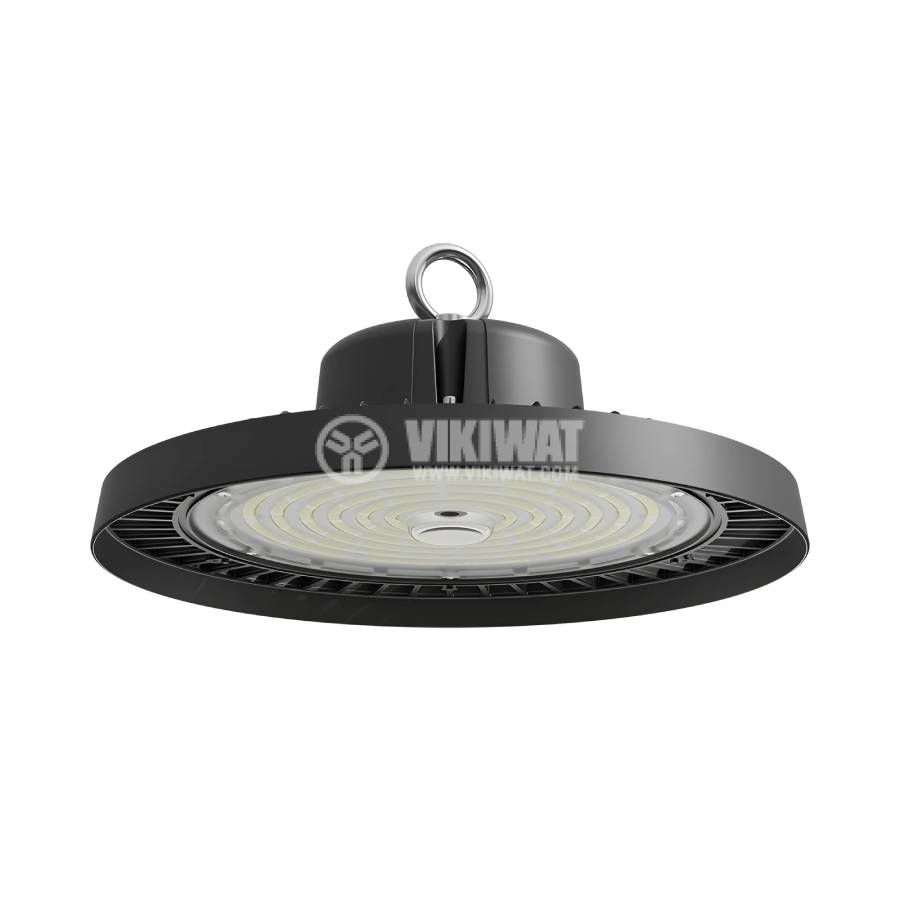

Industrial LED lamp UFO HIGHBAY, 200W, 220VAC, 20000lm, 6000K, cool white, IP65, waterproof, BT45-09632

Industrial UFO HIBAY LED Body, 200W, 220VAC, 20000lm, 6000K, IP65, waterproof, BT45-09632 - 1

Industrial LED lamp UFO HIGHBAY, 200W, 220VAC, 20000lm, 6000K, cool white, IP65, waterproof, BT45-09632 - 2

Industrial LED lamp UFO HIGHBAY, 200W, 220VAC, 20000lm, 6000K, cool white, IP65, waterproof, BT45-09632 - 3

Industrial UFO HIBAY LED Body, 200W, 220VAC, 20000lm, 6000K, IP65, waterproof, BT45-09632 - 4

Industrial LED lamp UFO HIGHBAY, 200W, 220VAC, 20000lm, 6000K, cool white, IP65, waterproof, BT45-09632 - 5

Industrial UFOHIBAY LED Body, 200W, 220VAC, 20000lm, 6000K, IP65 - 6

Industrial UFO HIBAY LED Body, 200W, 220VAC, 20000lm, 6000K, IP65, BT45-09632 - 7

Industrial UFOHIBAY LED Body, 200W, 220VAC, 20000lm, 6000K, IP65 - 8

Industrial UFOHIBAY LED Body, 200W, 220VAC, 20000lm, 6000K, IP65 - 9

Industrial UFOHIBAY LED Body, 200W, 220VAC, 20000lm, 6000K, IP65 - 10

LED industrial UFO HIBAY luminaire from Braytron with innovative technology which offers lower energy consumption and higher efficiency in lighting 100lm/W. Suitable for mounting in high ceiling building such as warehouses, stores and factories. Non-dimmable. Manufacturer warranty 2 years.

Rate this product Add to wishlist

Manufacturer: BRAYTRON

Warranty: 24 months

Price: 269.00лв. VAT Incl.

SKU: 30627

Weight: 4.200 Kgs

Quantity: 30

Application

Braytron industrial UFO HIBAY LED body is produced in a modern design as well as optimized in size and weight which contribute to their use in variety of industrial and high ceiling areas. BT45-09632 LED luminaire have an aluminium housing and built-in driver. They are water and dust protected with IP65 degree which makes them suitable for tough working conditions.

LED Industrial UFO HIBAY Body

model - BT45-09632;
supply voltage - 220-240 VAC;
power consumption - 200 W;
equivalent power - 1660 W;
luminous flux - 20000 lm;
color temperature - 6000 K;
light color - cold white;
degree of protection - IP65 (waterproof);
type of diodes - SMD;
overall dimensions - 276 x 135 mm;
beam angle - 110 °;
power factor (cos φ) - 0.9;
mounting - hanging;
body material - aluminum;
diffuser material - PC;
body color - dark gray;
nominal life - 20 000 h.

Additional information

For more detailed technical specifications and additional information, please check the file attached in section: Files on product page.

Technical Datasheet (EN) PDF, 560.88 KB
