Relay Socket AS403 (AS402), 12 VDC, 40 A, 4pin

Rating:

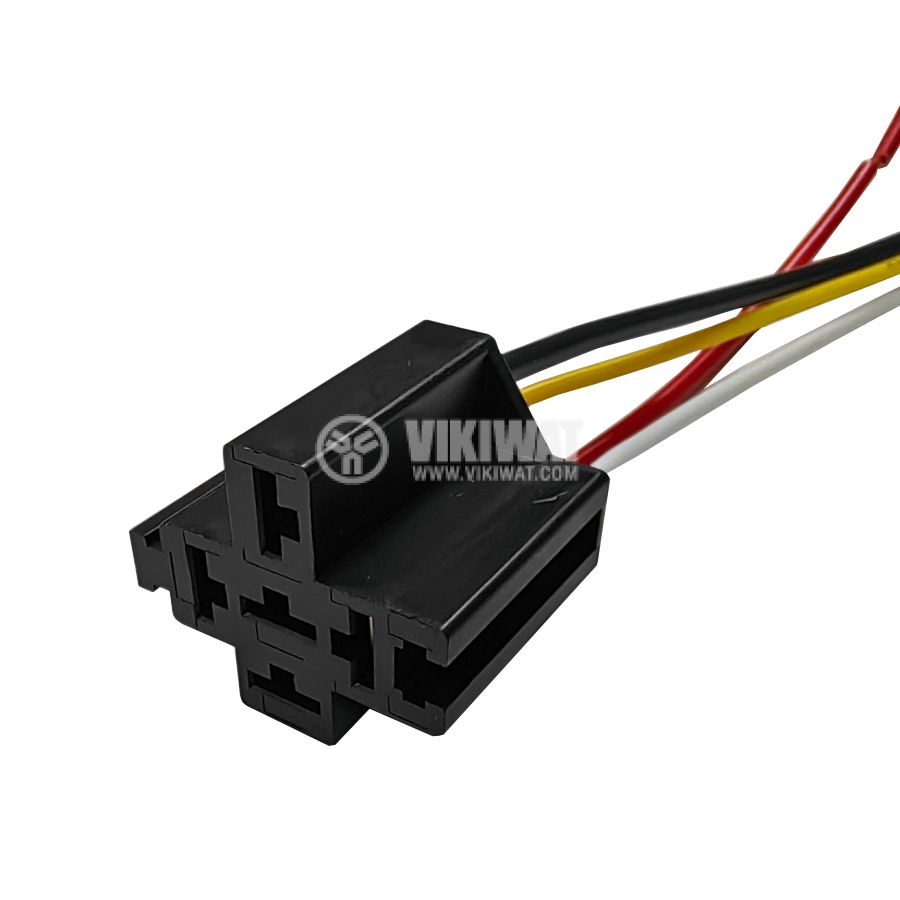

Automotive relay socket AS403 (AS402), 12 VDC, 40 A, 4pin

Rate this product Add to wishlist

Manufacturer: ASIA DRAGON

Price: 2.90лв. VAT Incl.

Quantity	1+	3+	5+	10+
List Price	2.90лв. VAT Incl.	2.76лв. VAT Incl.	2.61лв. VAT Incl.	2.47лв. VAT Incl.

Weight: 0.100 Kgs

Quantity: 0

Notify me when the product is available

SKU: 38274

Relay Socket

model - AS403;
mounting - panel;
number and arrangement of pins - 4 pieces, square;
type the terminals of the relay - 4-pin, 10 x 6 x 1 mm;
rated current - 40 A;
rated voltage - 14 VDC of the contact system and 12 VDC coil of the relay;
installation and diameter of connecting cable - SCREWLESS 1.5 - 2.5 mm2 (3 x 16 AWG and 2 x 18 AWG);
dimensions (W/H/L) - 26 x 23 x 23 mm;
features: with 250 mm cable.

Brand:

ASIA DRAGON

Number of pins:

4 [pins]

For relay models:

AS403/AS402

Rated current:

40 [A]

Dimensions:

140x26x23 [mm]

Mounting:

secure

Model:

AS403

Leads:

conductors

Rated voltage:

12 [VDC]
