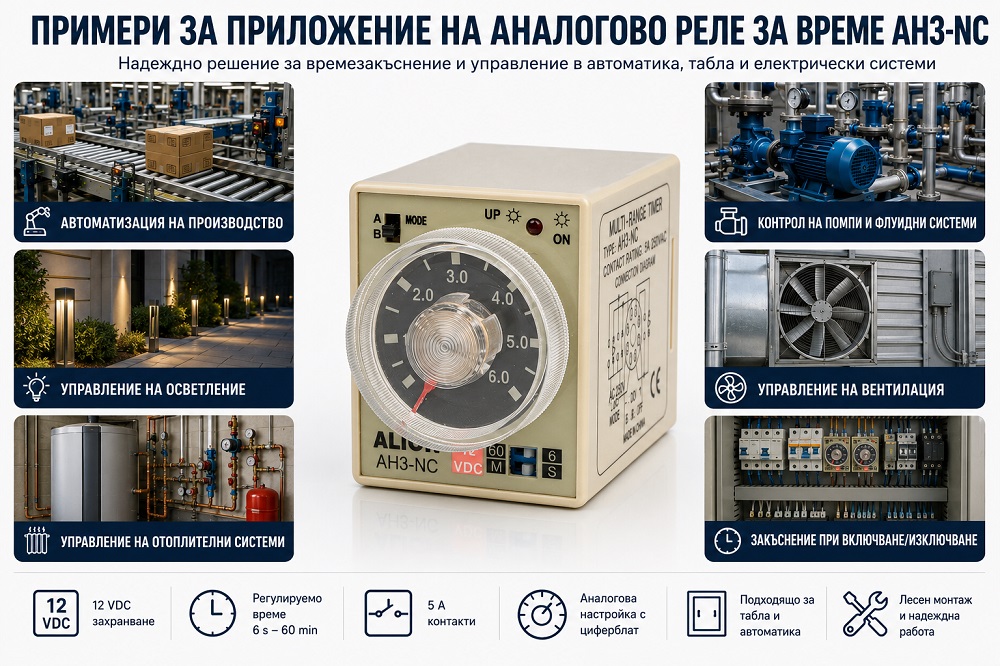

Analogue Time Relay, AH3-NC, 12VDC, SPDT or DPDT, 5A, 6s - 60min

Analogue Time Relay, AH3-NC, 12VDC, SPDT or DPDT, 5A, 6s - 60min - 1

Analogue Time Relay, AH3-NC, 12VDC, SPDT or DPDT, 5A, 6s - 60min - 2

Analogue Time Relay, AH3-NC, 12VDC, SPDT or DPDT, 5A, 6s - 60min - 3

Analogue Time Relay, AH3-NC, 12VDC, SPDT or DPDT, 5A, 6s - 60min - 1

Analogue Time Relay, AH3-NC, 12VDC, SPDT or DPDT, 5A, 6s - 60min - 3

Analogue time relay AH3-NC with 12 VDC supply voltage, 2 selectable modes: DPDT - mode A or SPDT - mode B, 5 A contacts current and time range from 6 s to 60 min.

Manufacturer:

ALION

Model:

AH3-NC

Individual Warranty:

24 months

Company Waranty:

12 months

Weight:

0.110 Kgs

Availability

Out of stock online

On site in Vikiwat shop

the price on site may be different

out of stock

€ 12.73 / 24.90 лв

Notify me when available Close

Notify me when the product is available

SKU: 16022

Specifications Files Reviews

Report an error

Specifications

Technical parameters of Analogue Time Relay, AH3-NC, 12VDC, SPDT or DPDT, 5A, 6s - 60min

Brand:

ALION

Relay type:

multipurpose

Supply voltage:

12 [VDC]

Working mode:

delay turn-on

Full range:

0~60min

Contacts load capacity at resistive load:

5A/250VAC

Sockets:

2x(NO+NC)

Mounting:

socket

Dimensions:

84x50x40 [mm]

Model:

AH3-NC

Operating range:

0~6s/0~60s/0~6min/0~60min

Contacts configuration:

SPDT

Operating temperature:

-10~55 [°C]

Files

Technical documentation of Analogue Time Relay, AH3-NC, 12VDC, SPDT or DPDT, 5A, 6s - 60min

AH3-NC PDF, 105.2 KB
