Timer, weekly, programmable, MT15, 220-240VAC, 30A

Timer, weekly, programmable, MT15, 220-240VAC, 30A - 2

Rating:

The product is used for weekly switching on and off by program of active, inductive, etc. type of cargo, it is important to consider the load capacity of the contacts for different types of cargo.

Rate this product Add to wishlist

Price: 32.90лв. VAT Incl.

Quantity	1+	3+
List Price	32.90лв. VAT Incl.	31.25лв. VAT Incl.

SKU: 32327

Weight: 0.146 Kgs

Quantity: 0

Notify me when the product is available

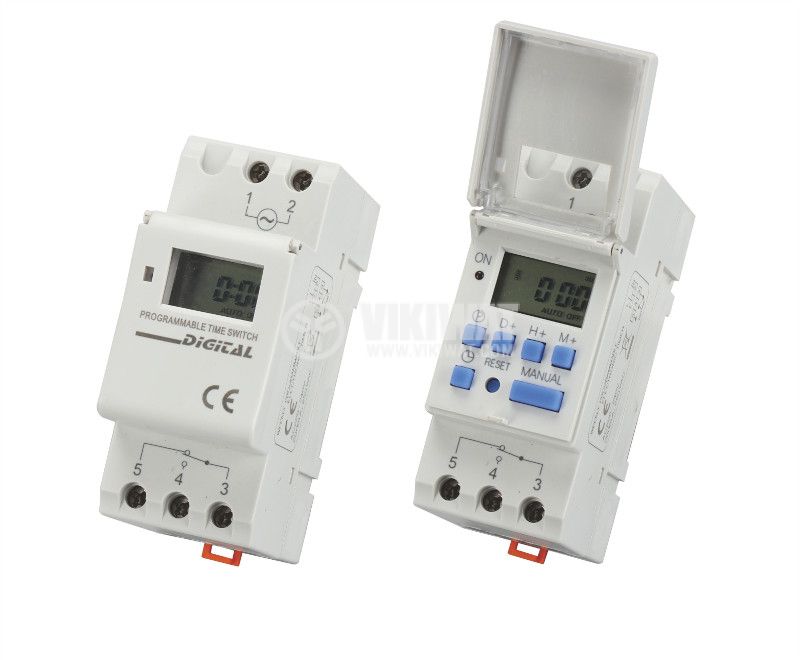

Timer

model - MT15;
type - weekly, programmable time relay;
hysteresis - 1 s for 24 h at 25 ° C;
supply voltage - 220 VAC;
operating frequency - 50 Hz;
contacts - NO + NC (normally open + normally closed) switching;
nominal contact voltage - 240 VAC;
maximum contact current - 30 A with active load;
electrical / mechanical contact durability - up to 1,000,000 times;
setting mode - programs with 17 turns + 17 turns, minimum interval of 1 minute;
built-in battery life - 3 years;
indication - LCD display;
power consumption - 2 W;
operating temperature from -10 ° C to + 40 ° C;

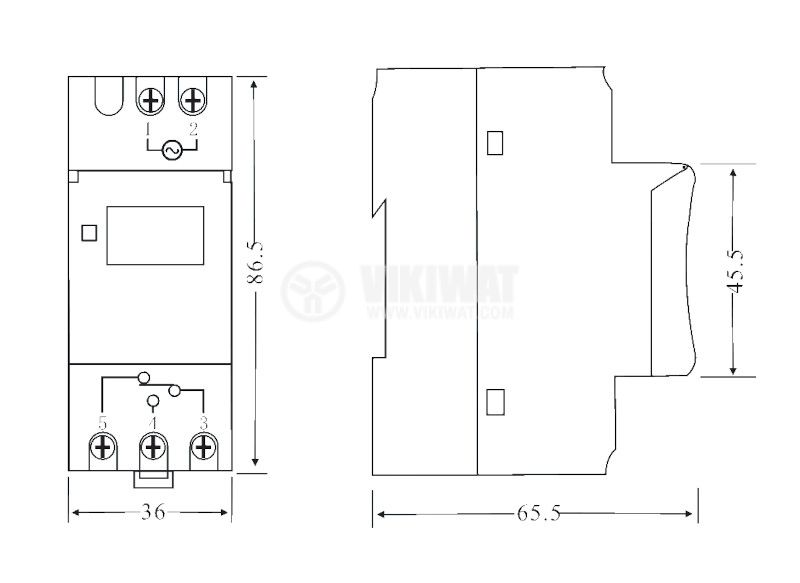

dimensions - 86.5x45.5x65.5 mm;
installation - eurohard (35 mm DIN IEC standard).

Additional information

The attached file provides detailed information about setting up and operating the product.

When starting up, turn on the timer to the power supply and leave it on for 12 hours to charge the battery, then press the R (reset) button with a sharp object to reset the data.
