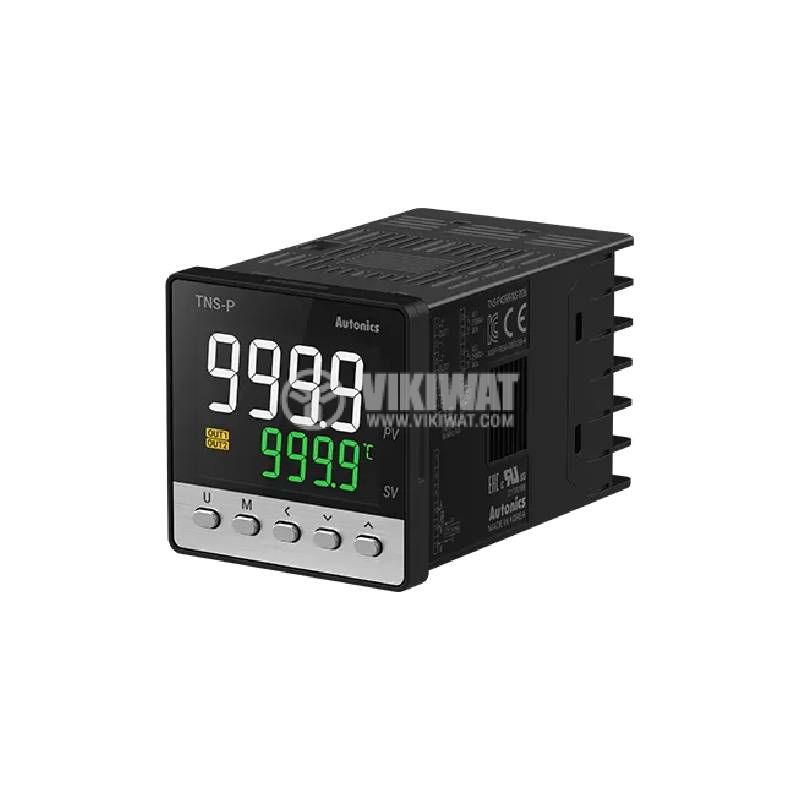

Thermal controller TNS-P42CC-NS-008, 100~240VAC, -200~2300°C, Cu50, Cu100, Pt100, Ni120, B, C, E, G, J, K, L, N, R, S, T, U, PLII

Temperature controller TNS-P42CC-NS-008, 220VAC

The thermal controller TNS-P42CC-NS-008 is compact and precise with a range of -200°C to 2300°C, compatible with Cu50, Cu100, Pt100, Pt50, Ni120, B, C, E, G, J, K, L, N, R, S, T, U, PLII thermocouples, with a supply voltage of 100-240 VAC and compatible with thermocouples.

Manufacturer:

AUTONICS

Model:

TNS-P42CC-NS-008

Individual Warranty:

24 months

Company Waranty:

12 months

Weight:

0.135 Kgs

Availability

Upon request

On site in Vikiwat shop

the price on site may be different

out of stock

Add the product in your request cart with the desired quantity. After sending the list of products on request, our employee will contact you to specify delivery and payment details.

€ 204.01 / 399.01 лв

Notify me when available Close

SKU: 162170

Specifications Files Reviews

Report an error

Specifications

Technical parameters of Thermal controller TNS-P42CC-NS-008, 100~240VAC, -200~2300°C, Cu50, Cu100, Pt100, Ni120, B, C, E, G, J, K, L, N, R, S, T, U, PLII

Brand:

AUTONICS

Supply voltage:

100~240 [VAC]

Temperature range:

-200~2300 [°C]

Temperature sensor:

Cu100, Cu50, Pt100, Pt50, B, C, E, G, J, K, L, N,R

Output type:

current

Control law:

P

PD

PI

ON/OFF

PID

Thermal controller setting:

keyboard

Model:

TNS-P42CC-NS-008

Dimensions:

49x49x75 [mm]

Display:

LCD

AC contacts load capacity:

3A/250VAC

Operating temperature:

-10~50 [°C]

Humidity range:

35~85 [%RH]

Power consumption:

8 [VA]

Protection degree:

IP65

Files

Technical documentation of Thermal controller TNS-P42CC-NS-008, 100~240VAC, -200~2300°C, Cu50, Cu100, Pt100, Ni120, B, C, E, G, J, K, L, N, R, S, T, U, PLII

Datasheet (EN) PDF, 396.05 KB
