Time Switch ATS18, 220VAC, Staircase timer, 30s~20min, 16A/250VAC, NO

Name: Time Switch ATS18, 220VAC, Staircase timer, 30s~20min, 16A/250VAC, NO
Brand: VEMARK
SKU: 102952
Price: 15.99 EUR
Availability: InStock

Time Switch ATS18, 220VAC, Staircase timer, 30s~20min, 16A/250VAC, NO - 1

Time delay relay ATS18 type stair automatic, maximum power of connected load up to 2300W, for DIN rail mounting. A device used for the construction of lighting installations in public and residential buildings.

Manufacturer:

VEMARK

Model:

ATS18

Individual Warranty:

24 months

Company Waranty:

12 months

Weight:

0.110 Kgs

Buy on installment with tbi bank

for a total cart value over € 50

Availability

Available online

194 pcs.

On site in Vikiwat shop

the price on site may be different

5 pcs.

See quantities

€ 15.99 / 31.27 лв

Buy on installment with tbi bank

for a total cart value over € 50

SKU: 102952

Description Specifications Files Reviews

Report an error

Description

Application

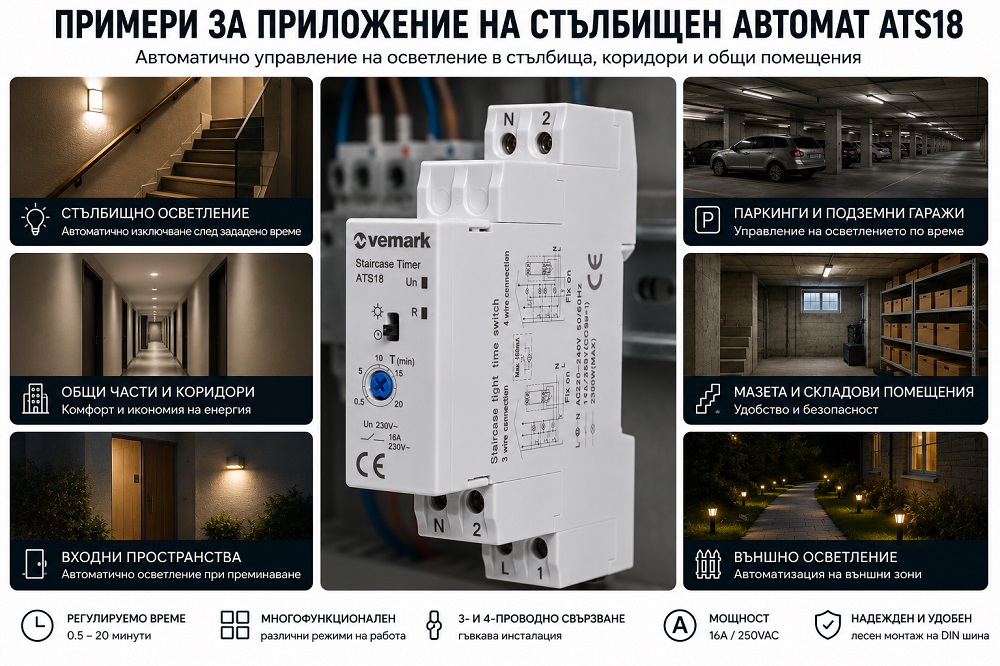

A stair switch designed for automatic lighting control in stairwells, corridors, entrances, garages, basements and other common areas of residential and public buildings. After activation by an electric switch or button, the device turns on the lighting for a preset period, then automatically turns it off. The ATS18 model operates on 230 VAC, offers an adjustable time delay from 30 seconds to 20 minutes and has a normally open contact with a load capacity of up to 16 A at 250 VAC. The lighting installation can be controlled directly from the relay or via an additional contactor if necessary.

Advantages:

automatic switching off of the lighting after a preset period;
adjustable time delay from 30 s to 20 min;
easy adjustment of the duration of operation;
suitable for controlling the lighting from switches or buttons located on different floors;
reduces unnecessary electricity consumption;
prevents leaving the lighting on for a long time;
contact load capacity up to 16 A at 250 VAC;
maximum power of the connected load up to 2300 W;
possibility of direct lighting control or control via an additional contactor;
suitable for staircases, corridors, entrances, garages and common areas;
compact design with a width of one standard DIN module;
easy integration into electrical and distribution panels;
quick installation on a standard DIN rail;
suitable for residential, commercial and public buildings.
