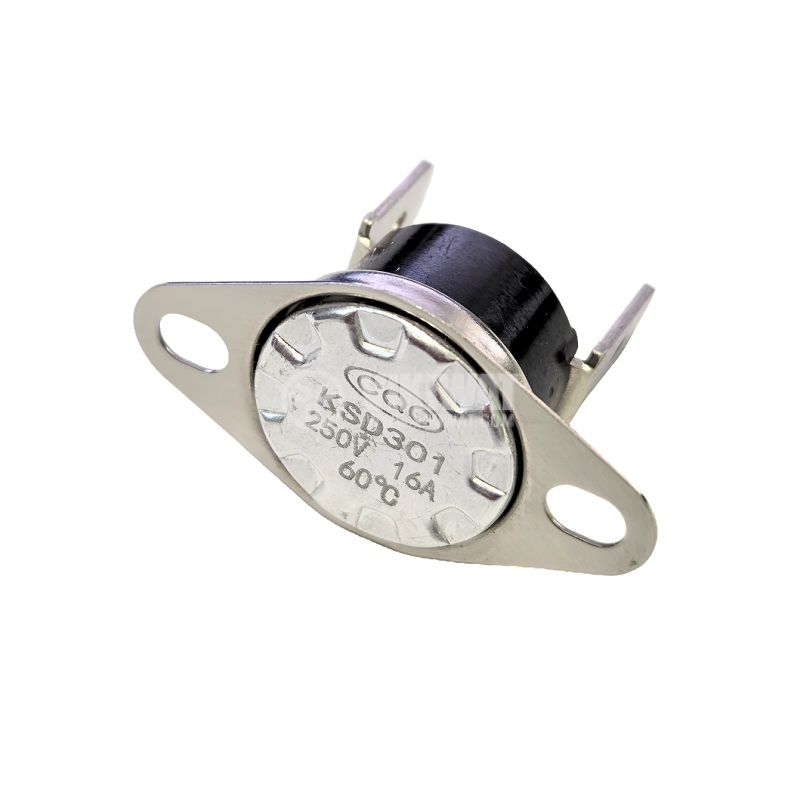

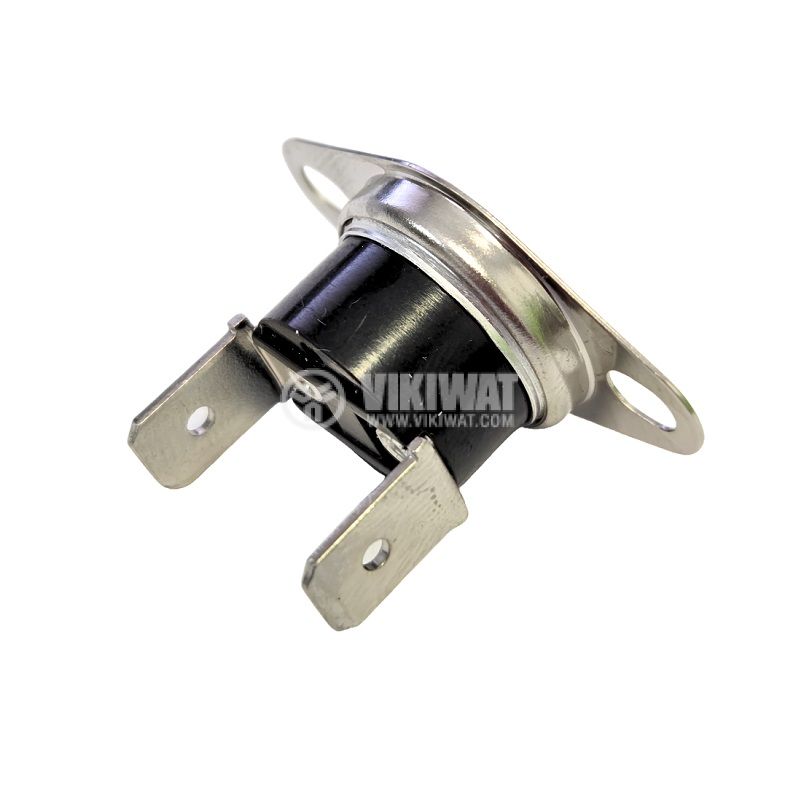

Bimetal Thermostat KSD301G 60°C NC 16A/250VAC bakelite

Bimetal Thermostat KSD-301A 60°C NC 10A/250VAC bakelite - 1

Bimetal Thermostat KSD-301A 60°C NC 10A/250VAC bakelite - 2

KSD-301A - 3

Bimetal Thermostat KSD-301A 60°C NC 10A/250VAC bakelite - 1

Bimetal Thermostat KSD-301A 60°C NC 10A/250VAC bakelite - 2

KSD-301A - 3

Bimetal thermostat KSD301G with opening temperature 60°C, NC, and contacts load capacity 16 A / 250 VAC.

Model:

KSD301G

Weight:

0.011 Kgs

Availability

Out of stock online

On site in Vikiwat shop

the price on site may be different

out of stock

Expected delivery of 1000 pcs.

on sale after 11.08

Possible speedy APS

€ 2.51 / 4.91 лв

Notify me when available Close

Notify me when the product is available

SKU: 51392

Specifications Reviews

Report an error

Specifications

Technical parameters of Bimetal Thermostat KSD301G 60°C NC 16A/250VAC bakelite

Thermostat kind:

bimetal automatic

Activation temperature:

60 [°C]

Sockets:

NC

Contacts load capacity at resistive load:

16A/250VAC

Leads:

pins 6.3x0.8mm

Leads position:

radial

Mounting:

movable ring

Housing material:

ceramics

Model:

KSD301G

Recovery temperature:

45 [°C]
