Capacitive sensor VJC18A3-B-Z/CX, M18x70mm, 6-36VDC, NPN, NO+NC, 1~10mm, non-shielded

Name: Capacitive sensor VJC18A3-B-Z/CX, M18x70mm, 6-36VDC, NPN, NO+NC, 1~10mm, non-shielded
Brand: VEMARK
SKU: 38655
Price: 34.90 BGN
Availability: InStock
Rating: 5.0000 (1 reviews)

Capacitive sensor VJC18A3-B-Z/CX, M18x70mm, 6-36VDC, NPN, NO+NC, 1~10mm, non-shielded
- 1

Capacitive sensor VJC18A3-B-Z/CX, M18x70mm, 6-36VDC, NPN, NO+NC, 1~10mm, non-shielded
- 2

Capacitive sensor VJC18A3-B-Z/CX, M18x70mm, 6-36VDC, NPN, NO+NC, 1~10mm, non-shielded
- 3

Capacitive sensor VJC18A3-B-Z/CX, M18x70mm, 6-36VDC, NPN, NO+NC, 1~10mm, non-shielded
- 4

Capacitive sensor VJC18A3-B-Z/CX, M18x70mm, 6-36VDC, NPN, NO+NC, 1~10mm, non-shielded
- 5

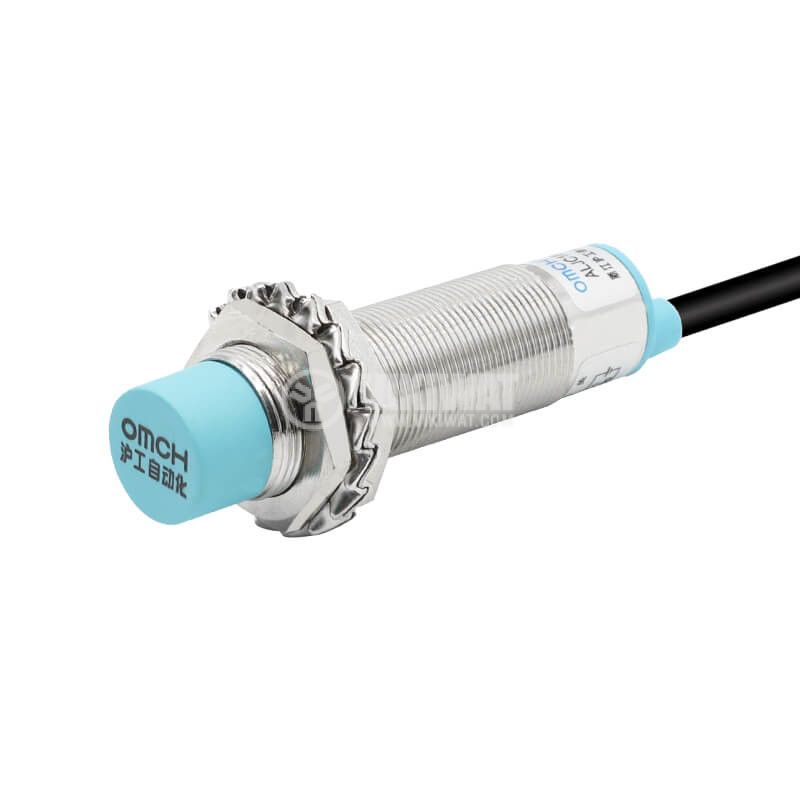

Capacitive sensor with metal housing M18x70 mm type NPN with one normally open and one normally closed contact, without screen, nominal operating distance 10 mm, four-wire cable with a length of 2 m, LED indication of the operating status, possibility to manually adjust the operating range.

Manufacturer:

VEMARK

Model:

VJC18A3-B-Z/CX

Individual Warranty:

24 months

Company Waranty:

12 months

Weight:

0.095 Kgs

Availability

Available online

40 pcs.

On site in Vikiwat shop

the price on site may be different

8 pcs.

See quantities

BGN 34.90 VAT Incl.

Prices for quantities (VAT Incl.)

BGN 34.90

BGN 33.15

BGN 31.41

10+

BGN 29.67

SKU: 38655

Specifications Reviews

Specifications

Technical parameters of Capacitive sensor VJC18A3-B-Z/CX, M18x70mm, 6-36VDC, NPN, NO+NC, 1~10mm, non-shielded

Brand:

VEMARK

Mounting opening:

ф18 [mm]

Supply voltage:

6~36 [VDC]

Sockets:

NO+NC

Nominal distance Sn:

10 [mm]

Sensor kind:

unshielded

Junction type:

NPN

Output current:

200 [mA]

Dimensions:

M18x70 [mm]

Housing material:

metal

Model:

VJC18A3-B-Z/CX

Operating temperature:

-10~55 [°C]

Protection degree:

IP65

Indicator kind:

LED
