Power adapter 20VDC, 6A, 120W, 85~264VAC, 120~370VDC, impulse, GST120A20-P1M

Name: Power adapter 20VDC, 6A, 120W, 85~264VAC, 120~370VDC, impulse, GST120A20-P1M
Brand: MEAN WELL
SKU: 110146
Price: 137.50 BGN
Availability: OutOfStock

Power adapter MEAN WELL GST120A20-P1M - 1

Power adapter 20VDC, 6A, 120W, 85~264VAC, 120~370VDC, impulse - 2

Adapter for power supply of consumers with operating voltage 20 VDC and current 6 A. Supply voltage of the adapter is 85~264 VAC / 120~370 VDC with connector dimensions 5.5 x 2.5 mm and cable length 1.2 m.

Manufacturer:

MEAN WELL

Model:

GST120A20-P1M

Individual Warranty:

24 months

Company Waranty:

24 months

Weight:

0.600 Kgs

Availability

Qty

Delivery time

Vikiwat Store

shop purchase

Out of stock

BGN 137.50 VAT Incl.

Notify me when available

Notify me when the product is available

Prices for quantities (VAT Incl.)

Quantity	1+	3+	5+	10+
List Price	BGN 137.50	BGN 130.63	BGN 123.75	BGN 116.88

SKU: 110146

Description Specifications Files Reviews

Description

Universal adapter

To properly select the power of the device, it is advisable to consult a specialist. The power must be based on the power of the consumers and the type of load:

The nominal power of the device must be 20-30% higher than the load capacity of the consumer at an active load (heaters, electric ovens, furnaces, stoves, incandescent lamps, etc.). This is due to the high starting current of the loads. When the load is switched on and during repeated short-time modes, the load over a short period significantly exceeds the nominal parameters specified in the load characteristics.

When the device is used in conjunction with inductive load consumers, the power must be 3 to 5 times the power consumption of the load! (fluorescent lighting, electric motors, pumps, air conditioners, refrigerators and freezers, etc.).

When the device is used for consumers with a capacitive load, the selected power must be 5 to 10 times greater than the power consumption of the load! (pulse chargers, LED drivers, pulse power supplies, etc.).

If these instructions are not complied with, it is possible for the device to be overloaded and stop functioning, and the warranty will not cover the damage.

Specifications

Technical parameters of Power adapter 20VDC, 6A, 120W, 85~264VAC, 120~370VDC, impulse, GST120A20-P1M

Brand:

MEAN WELL

Output voltage:

20 [VDC]

Output current:

6 [A]

Output power:

120 [W]

Input voltage:

85~264/120~370 [VAC/VDC]

Adapters and chargers kind:

switched-mode

Tips:

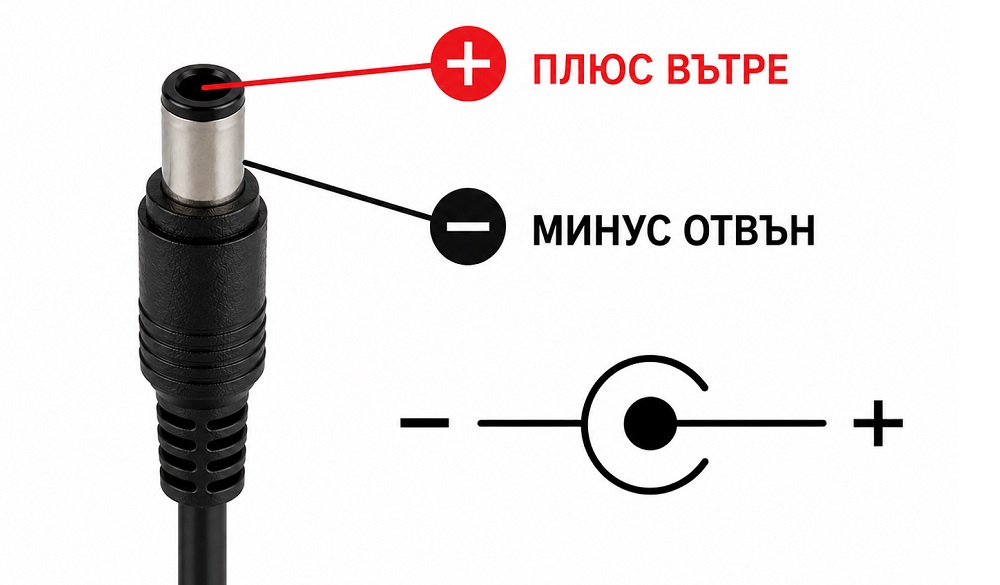

5.5x2.5mm (Universal)

Cable length:

1.2 [m]

Dimensions:

167x67x35 [mm]

Model:

GST120A20-P1M

Adapters and chargers type:

AC-DC

Files

Technical documentation of Power adapter 20VDC, 6A, 120W, 85~264VAC, 120~370VDC, impulse, GST120A20-P1M

Datasheet MEAN WELL GST120A20-P1M (EN) PDF, 1.16 MB
