Power adapter 24VDC, 1.67A, 40W, 90~264VAC, 127~370VDC, impulse, GST40A24-P1J
Power adapter 24VDC, 1.67A, 40W, 90~264VAC, 127~370VDC, impulse, GST40A24-P1J

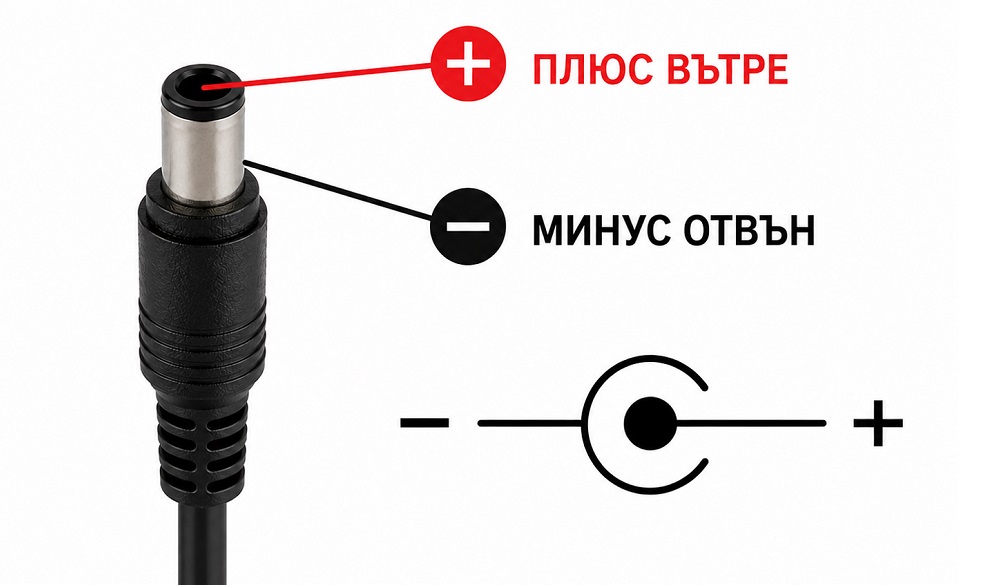

Adapter for power supply of consumers with operating voltage 24 VDC and current 1.67 A. Supply voltage of the adapter is 90~264 VAC / 127~370 VDC with connector dimensions 5.5 x 2.1 mm and cable length 1.8 m.
To properly select the power of the device, it is advisable to consult a specialist. The power must be based on the power of the consumers and the type of load:
The nominal power of the device must be 20-30% higher than the load capacity of the consumer at an active load (heaters, electric ovens, furnaces, stoves, incandescent lamps, etc.). This is due to the high starting current of the loads. When the load is switched on and during repeated short-time modes, the load over a short period significantly exceeds the nominal parameters specified in the load characteristics.
When the device is used in conjunction with inductive load consumers, the power must be 3 to 5 times the power consumption of the load! (fluorescent lighting, electric motors, pumps, air conditioners, refrigerators and freezers, etc.).
When the device is used for consumers with a capacitive load, the selected power must be 5 to 10 times greater than the power consumption of the load! (pulse chargers, LED drivers, pulse power supplies, etc.).
If these instructions are not complied with, it is possible for the device to be overloaded and stop functioning, and the warranty will not cover the damage.
Specifications
Technical parameters of Power adapter 24VDC, 1.67A, 40W, 90~264VAC, 127~370VDC, impulse, GST40A24-P1J
Brand:
MEAN WELL
Output voltage:
24 [VDC]
Output current:
1.67 [A]
Output power:
40 [W]
Input voltage:
90~264/127~370 [VAC/VDC]
Adapters and chargers kind:
switched-mode
Tips:
5.5x2.1mm (HP, Acer, Toshiba, Sega)
Cable length:
1.8 [m]
Dimensions:
125x50x31.5 [mm]
Model:
GST40A24-P1J
Adapters and chargers type:
AC-DC
Files
Technical documentation of Power adapter 24VDC, 1.67A, 40W, 90~264VAC, 127~370VDC, impulse, GST40A24-P1J
