Adapter, 12VDC, 5A, 60W, 90~264VAC, 5.5x2.5mm, switched-mode, E6012C8-2555+OP

Name: Adapter, 12VDC, 5A, 60W, 90~264VAC, 5.5x2.5mm, switched-mode, E6012C8-2555+OP
Brand: ESPE
SKU: 146237
Price: 24.41 EUR
Availability: OutOfStock

Desktop Power Supply 12V, switched-mode type, E6012C8-2555+OP

Desktop power supply, with output voltage of 12V, input voltage 90~264V, connectors 5.5x2.5mm (Universal), switched-mode type , with size of 115x50x31mm, model E6012C8-2555+OP. Socket polarity - plus inside, minus outside.

Manufacturer:

ESPE

Model:

E6012C8-2555+OP

Individual Warranty:

24 months

Company Waranty:

12 months

Weight:

0.275 Kgs

Availability

Out of stock online

On site in Vikiwat shop

the price on site may be different

out of stock

€ 24.41 / 47.74 лв

Notify me when available Close

Notify me when the product is available

SKU: 146237

Description Specifications Files Reviews

Report an error

Description

Additional information

To correctly select the power of the device, it is recommended to consult a specialist. The power must be consistent with the power of the consumers and the type of load:

The nominal power of the device must be 20-30% higher than the power of the consumer with active load (heaters, electric ovens, furnaces, stoves, incandescent lamps, etc.). This is necessary due to the high starting current of the loads. When the load is switched on and in repeated short-term modes, the load for a short period significantly exceeds the nominal parameters specified in the technical characteristics of the load.
When the device is used in combination with consumers with inductive load, the power must be 3 to 5 times greater than the power consumed by the load! (luminescent and fluorescent lighting, electric motors, pumps, air conditioners, refrigerators and freezers, etc.).
When the device is used with consumers with capacitive load, the selected power must be 5 to 10 times greater than the power consumed by the load! (switching chargers, LED drivers, switching power supplies, etc.).

If these instructions are not followed, the device may be overloaded and stop functioning, and accordingly the warranty will not cover the damage.

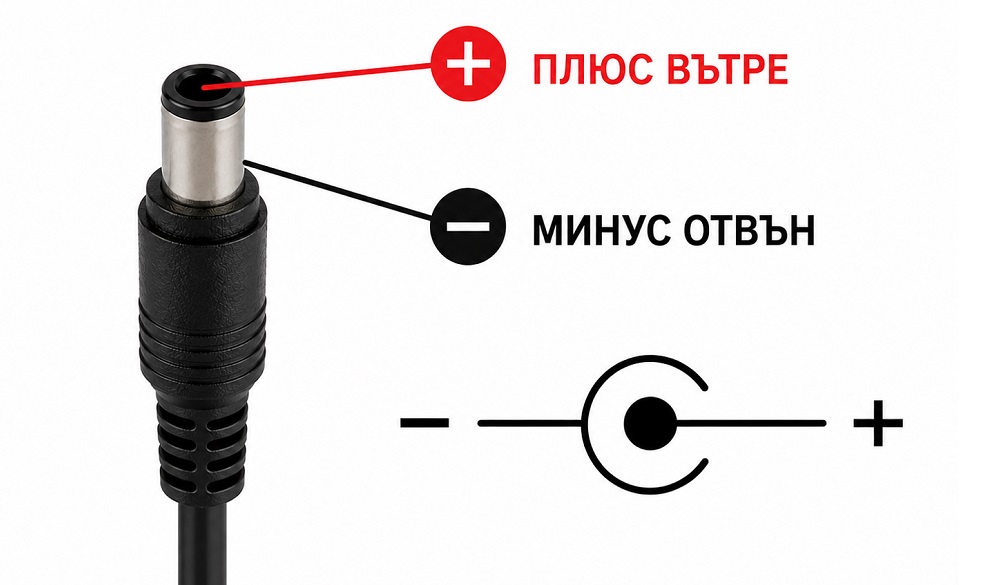

Power socket
