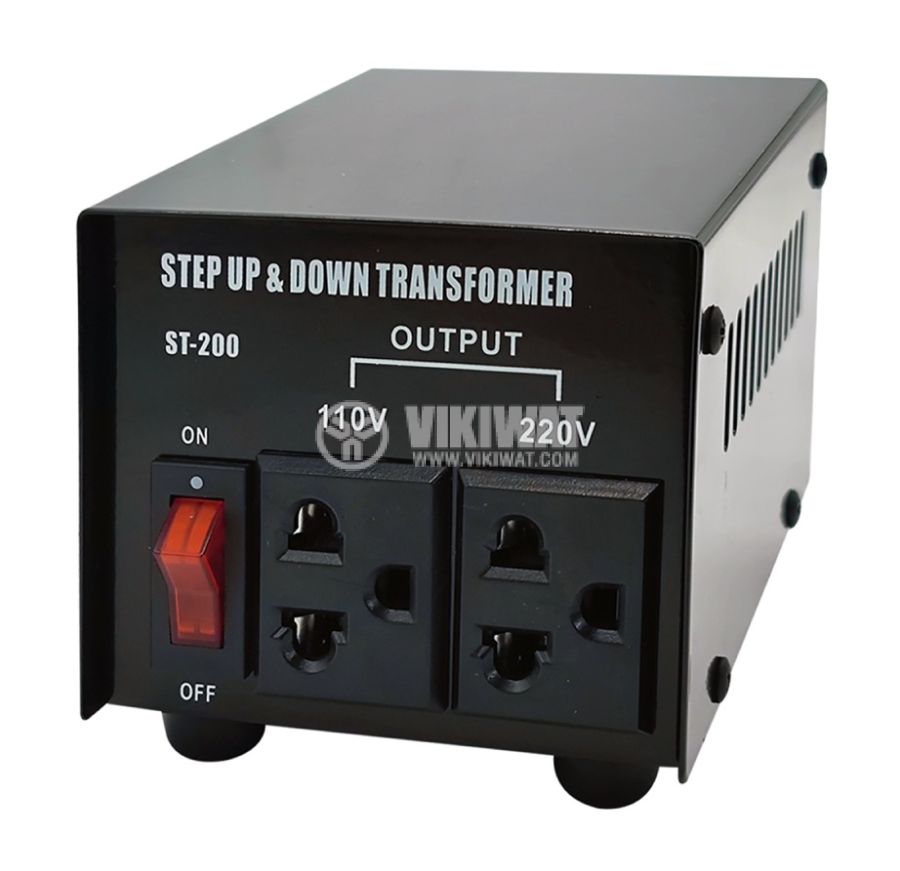

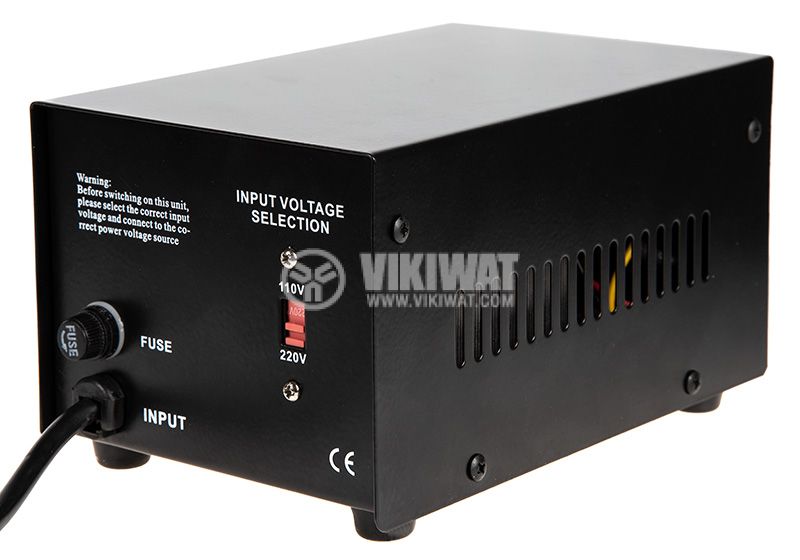

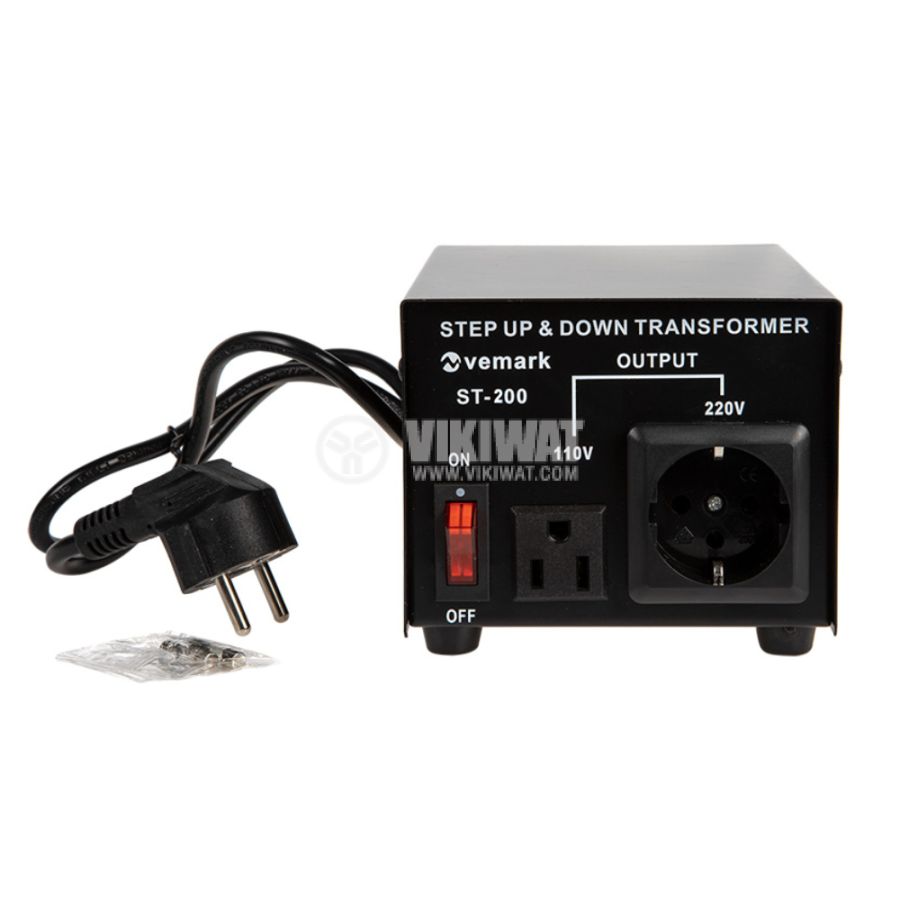

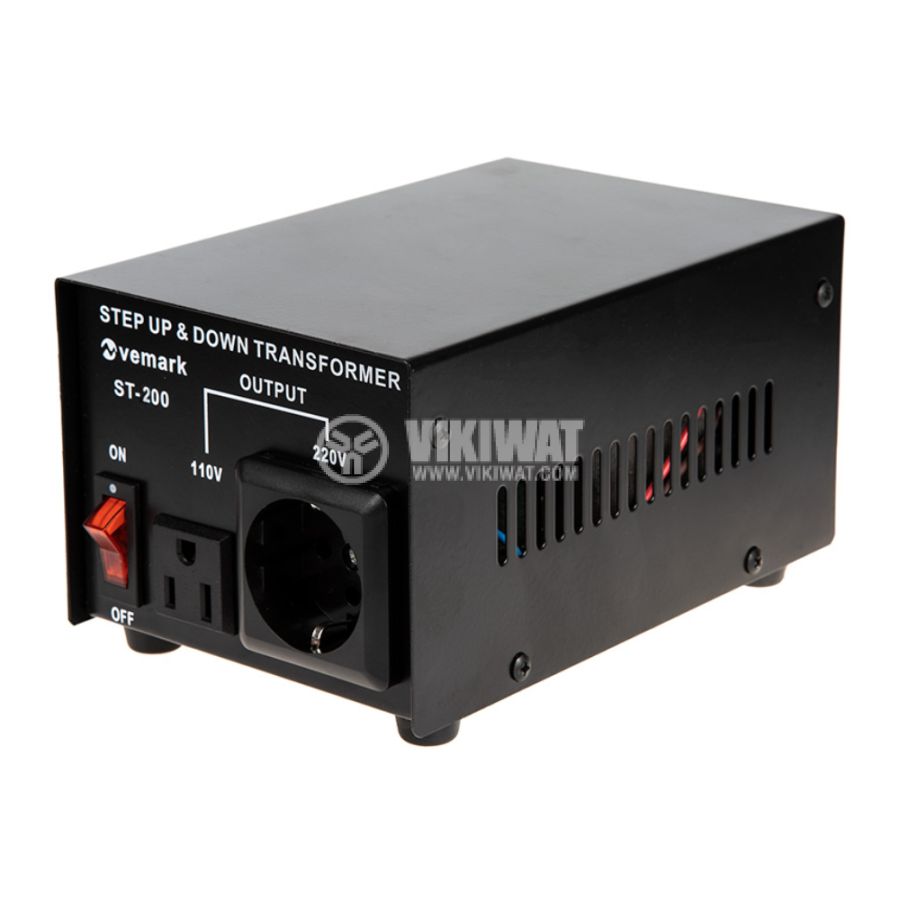

Converter 200W, 220VAC-110VAC, TC-200

The TC Series Transformers are designed to power household and industrial electrical appliances with 220VAC or 110VAC. They are designed for such electronic equipment whose nominal AC voltage is different from that of the local network. Transformers are safe to use within the specified parameters.

Rate this product Add to wishlist

Manufacturer: VEMARK

-5%

Price: 23.66лв. VAT Incl.

The offer is valid from 15.07.2019 to 21.07.2019

List Price: ~~24.90лв.~~ VAT Incl.

Discount: 1.25лв. VAT Incl. (5.00%)

SKU: 810

Weight: 1.400 Kgs

Quantity: 179

TC-200 converter

type - AC / AC bidirectional;
Input voltage - 220 VAC or 110 VAC;
Output voltage - 110 VAC or 220 VAC;
rated power - 200 W;
output current - 1.8 / 0.9 (A);
execution - metal box;
connectors - USA contact + cable shuko EU;
size - 100x69x82 mm.

More information

To properly select the power of the device, it is advisable to consult a specialist. The power must be based on the power of the consumers and the type of load:

the rated power of the device must be 20-30% higher than the power of the consumer at an active load (heaters, electric ovens, furnaces, stoves, incandescent lamps, etc.). This is due to the high starting current of the loads. When the load is switched on and during repeated short-time modes, the load over a short period significantly exceeds the nominal parameters indicated in the load characteristics.

when the device is used in conjunction with inductive load consumers, the power must be 3 to 5 times greater than the power consumption of the load! (fluorescent and fluorescent lighting, electric motors, pumps, air conditioners, refrigerators and freezers, etc.).

when the device is used with capacitive load consumers, the selected power must be 5 to 10 times greater than the load power consumed! (pulse chargers, LED drivers, pulse power supplies, etc.).

If these instructions are not met, it is possible for the device to be overloaded and to stop functioning, and therefore the warranty will not cover the damage.

Brand:

VEMARK

Power:

200 [W]

Input voltage:

220 [VAC]

Output voltage:

110 [VAC]

Converter type:

AC/AC two-way

Output current:

0.9 [A]

Dimensions:

102x70x80 [mm]

Model:

TC-200

Frequency:

50~60 [Hz]

Input current:

1.8 [A]

Instruction for using the converter TC (BG) PDF, 338.75 KB
