Converter, 1500W, 220VAC-110VAC, TC-1500

Converter, 1500W, 220VAC-110VAC, TC-1500 - 2

Converter, 1500W, 220VAC-110VAC, TC-1500 - 3

Converter, 1500W, 220VAC-110VAC, TC-1500 - 4

Converter, 1500W, 220VAC-110VAC, TC-1500 - 5

Rating:

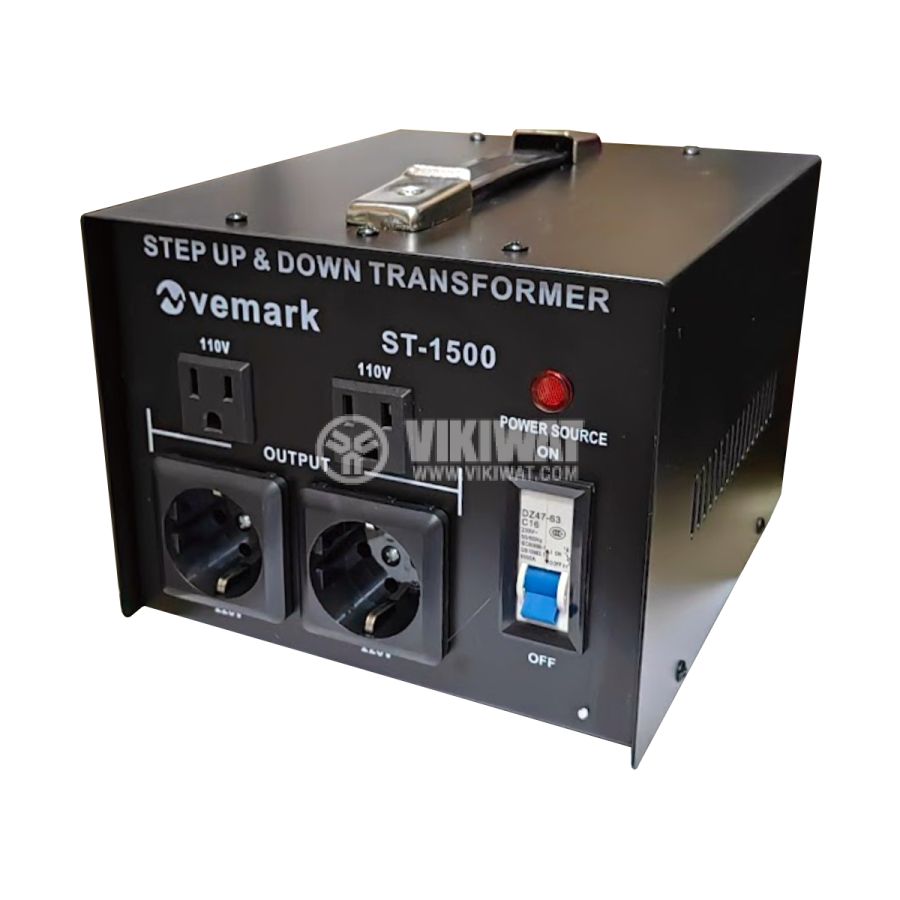

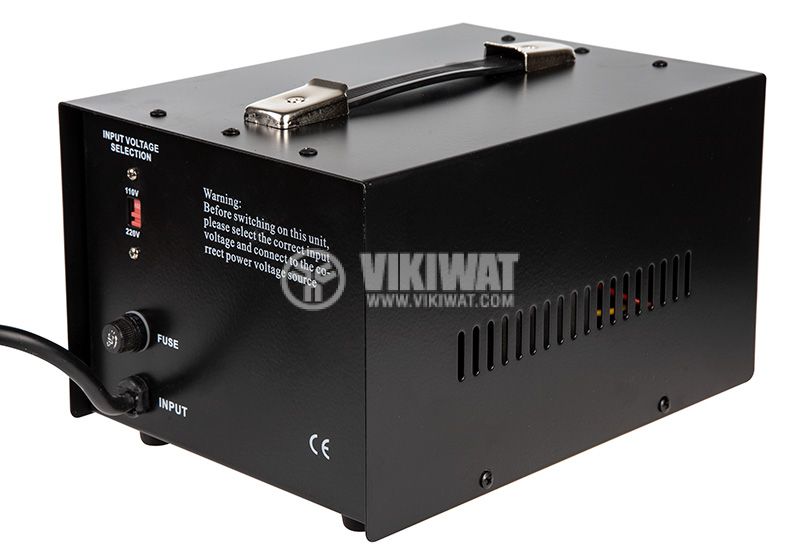

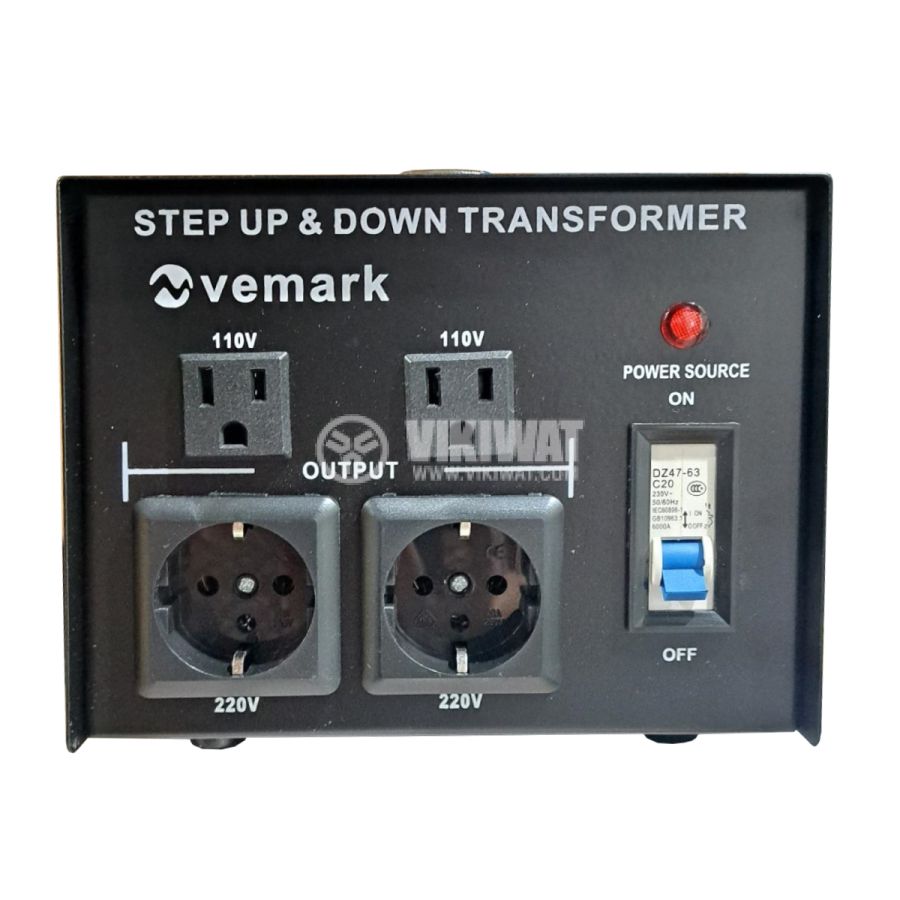

Step up/down voltage transformer TC-1500, 1500W, 220VAC-110VAC

Rate this product Add to wishlist

Manufacturer: VEMARK

Warranty: 12 months

Price: 99.00лв. VAT Incl.

Quantity	1+	3+
List Price	99.00лв. VAT Incl.	94.05лв. VAT Incl.

SKU: 5977

Weight: 8.000 Kgs

Quantity: 53

Converter TC-1500

type - AC / AC bidirectional;
input voltage - 220 VAC or 110 VAC;
output voltage - 110 VAC or 220 VAC;
power rating - 1500 W;
output current - 11.64/6.82 (A);
body material - metal;
connection - power terminals;
size - 150x125x150 mm.

Attention!

To properly select the power of the device, it is advisable to consult a specialist. The power must be based on the power of the consumers and the type of load:

The nominal power of the device must be 20-30% higher than the load capacity of the consumer at an active load (heaters, electric ovens, furnaces, stoves, incandescent lamps, etc.). This is due to the high starting current of the loads. When the load is switched on and during repeated short-time modes, the load over a short period significantly exceeds the nominal parameters specified in the load characteristics.

When the device is used in conjunction with inductive load consumers, the power must be 3 to 5 times the power consumption of the load! (fluorescent lighting, electric motors, pumps, air conditioners, refrigerators and freezers, etc.).

When the device is used for consumers with a capacitive load, the selected power must be 5 to 10 times greater than the power consumption of the load! (pulse chargers, LED drivers, pulse power supplies, etc.).

If these instructions are not complied with, it is possible for the device to be overloaded and stop functioning, and the warranty will not cover the damage.

Инструкция за работа с конвертори PDF, 359.7 KB
