Power Adapter, 12VDC, 8A, 96W, 100-240VAC, 5.5x2.5mm, stabilized, impulse, N18061

Power Adapter, 12VDC, 8A, 96W, 100-240VAC, 5.5x2.5mm, stabilized, impulse, N18061
- 1

Power Adapter, 12VDC, 8A, 96W, 100-240VAC, 5.5x2.5mm, stabilized, impulse, N18061
- 2

Power Adapter, 12VDC, 8A, 96W, 100-240VAC, 5.5x2.5mm, stabilized, impulse, N18061
- 3

Power Adapter, 12VDC, 8A, 96W, 100-240VAC, 5.5x2.5mm, stabilized, impulse, N18061
- 1

Power supply adapter N18061, input voltage 100 - 240 VAC, output voltage 12 VDC, output current 8 A

Model:

N18061

Individual Warranty:

24 months

Company Waranty:

12 months

Weight:

0.770 Kgs

Availability

Available online

2 pcs.

On site in Vikiwat shop

the price on site may be different

out of stock

See quantities

€ 33.75 / 66.01 лв

SKU: 1094

Description Specifications Reviews

Report an error

Description

More information

A power cord is plugged into the adapter.

To properly select the power of the device, it is advisable to consult a specialist. The power must be based on the power of the consumers and the type of load:

The nominal power of the device must be 20-30% higher than the load capacity of the consumer at an active load (heaters, electric ovens, furnaces, stoves, incandescent lamps, etc.). This is due to the high starting current of the loads. When the load is switched on and during repeated short-time modes, the load over a short period significantly exceeds the nominal parameters specified in the load characteristics.

When the device is used in conjunction with inductive load consumers, the power must be 3 to 5 times the power consumption of the load! (fluorescent lighting, electric motors, pumps, air conditioners, refrigerators and freezers, etc.).

When the device is used for consumers with a capacitive load, the selected power must be 5 to 10 times greater than the power consumption of the load! (pulse chargers, LED drivers, pulse power supplies, etc.).

If these instructions are not complied with, it is possible for the device to be overloaded and stop functioning, and the warranty will not cover the damage.

Specifications

Technical parameters of Power Adapter, 12VDC, 8A, 96W, 100-240VAC, 5.5x2.5mm, stabilized, impulse, N18061

Output voltage:

12 [VDC]

Output current:

8 [A]

Output power:

96 [W]

Input voltage:

100~240 [VAC]

Adapters and chargers kind:

stabilized

Tips:

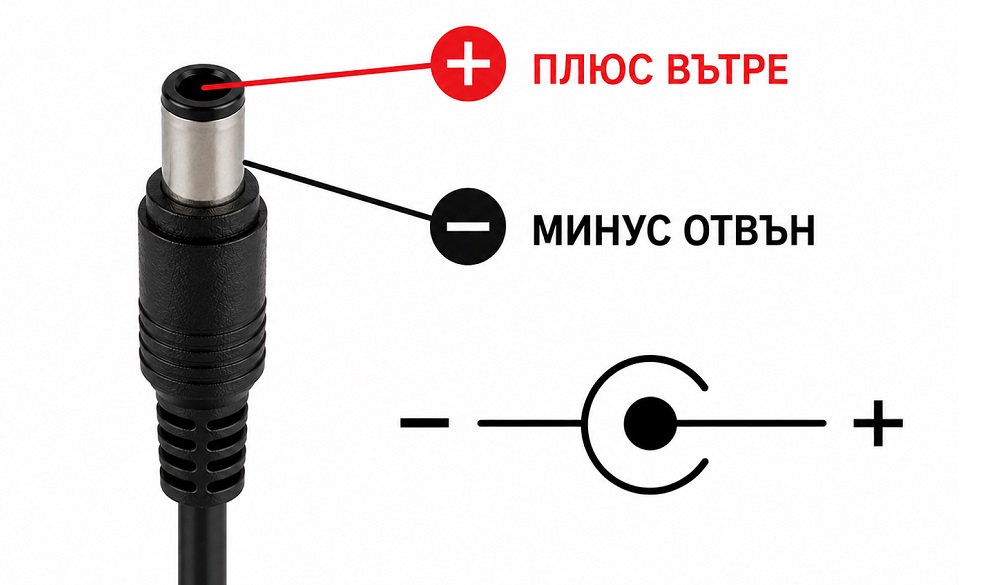

5.5x2.5mm (Universal)

Cable length:

1 [m]

Dimensions:

170x74x40 [mm]

Model:

N18061

Adapters and chargers type:

AC-DC
