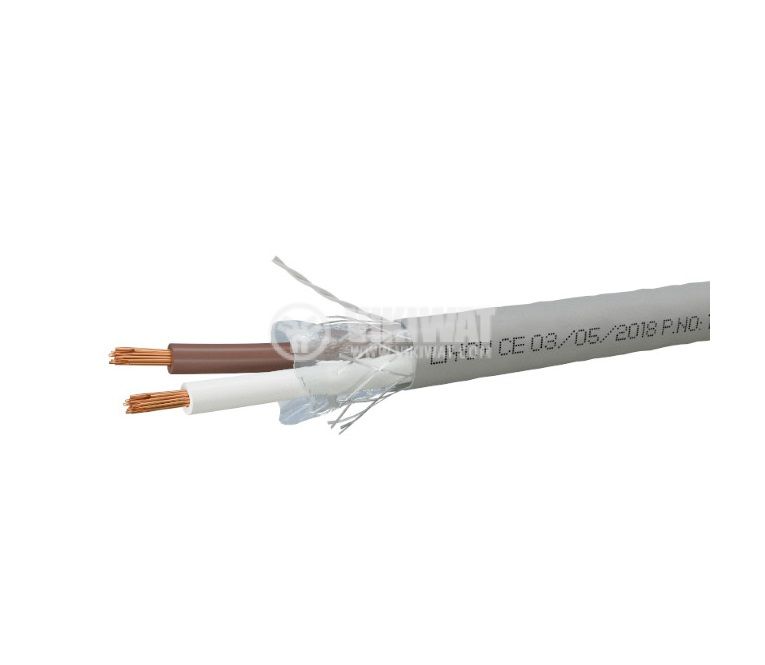

Data control communication cable, 2x0.5mm2, copper, white, shielded, LIYCY

Data control communication cable, 2x0.5mm2, copper, white, shielded, LIYCY

LIYCY shielded cable 2x0.25mm2

Model:

LIYCY

Weight:

0.017 Kgs

Availability

Available online

429 pcs.

On site in Vikiwat shop

the price on site may be different

60 pcs.

See quantities

€ 1.23 / 2.41 лв

SKU: 3655

Description Specifications Reviews

Report an error

Description

Application

Flexible communication cable for control measurement systems, data transmission and others

Additional information

The price is for linear meter.

Specifications

Technical parameters of Data control communication cable, 2x0.5mm2, copper, white, shielded, LIYCY

Cable kind:

for control and data

Number of conductors:

2 [conduct.]

Conductor cross-section:

0.25 [mm²]

Cores structure:

stranded

Cores material:

copper

Outer insulation:

polyvinyl chloride (PVC)

Shielding material:

aluminum

Cores insulation:

polyvinyl chloride (PVC)

Model:

LIYCY

Features:

gray

Operating temperature:

-40~70 [°C]

Rated voltage:

250 [V]

Test voltage:

1500V

Impedance:

80 [ohm]

Conductor resistance:

77.8 Ohm/km

Capacity wire-wire:

110 pF/m

Working capacity core-all cores:

150 pF/m

Inductance:

0.67 mH/km

Insulation resistance:

20 min(MOhm/km)
