Power adapter 15VDC, 6A, 90W, 90~264VAC, 127~370VDC, impulse, GST90A15-P1M

Name: Power adapter 15VDC, 6A, 90W, 90~264VAC, 127~370VDC, impulse, GST90A15-P1M
Brand: MEAN WELL
SKU: 110163
Price: 84.90 BGN
Availability: InStock

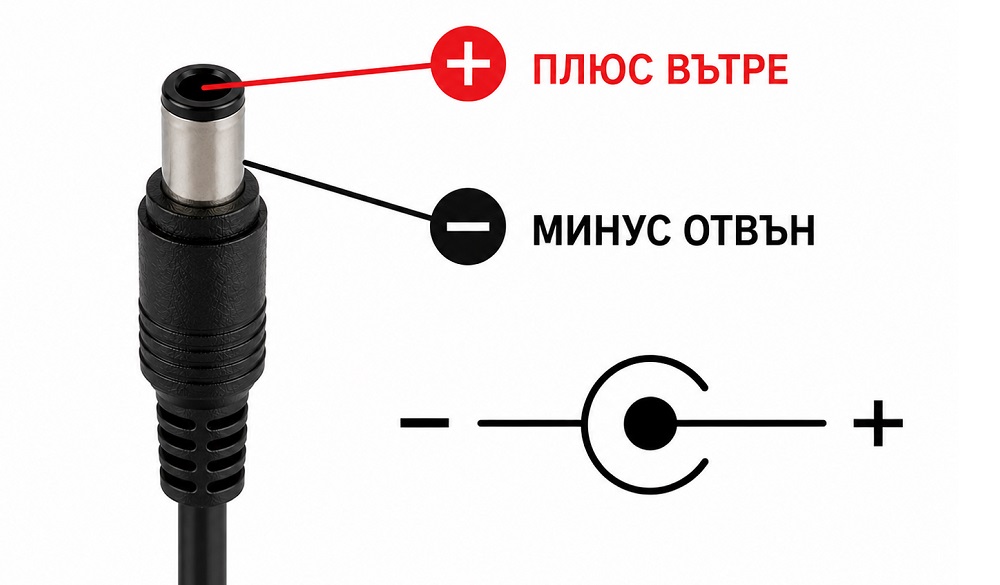

Adapter for power supply of consumers with operating voltage 15 VDC and current 6 A. Supply voltage of the adapter is 90~264 VAC / 127~370 VDC with connector dimensions 5.5 x 2.5 mm and cable length 1 m.

Manufacturer:

MEAN WELL

Model:

GST90A15-P1M

Individual Warranty:

24 months

Company Waranty:

24 months

Weight:

0.450 Kgs

With quantity request option

Availability

Delivery within 10 days

907 pcs.

On site in Vikiwat shop

the price on site may be different

out of stock

See quantities

BGN 84.90 VAT Incl.

Prices for quantities (VAT Incl.)

BGN 84.90

BGN 80.66

SKU: 110163

Description Specifications Files Reviews

Description

Universal adapter

To properly select the power of the device, it is advisable to consult a specialist. The power must be based on the power of the consumers and the type of load:

The nominal power of the device must be 20-30% higher than the load capacity of the consumer at an active load (heaters, electric ovens, furnaces, stoves, incandescent lamps, etc.). This is due to the high starting current of the loads. When the load is switched on and during repeated short-time modes, the load over a short period significantly exceeds the nominal parameters specified in the load characteristics.

When the device is used in conjunction with inductive load consumers, the power must be 3 to 5 times the power consumption of the load! (fluorescent lighting, electric motors, pumps, air conditioners, refrigerators and freezers, etc.).

When the device is used for consumers with a capacitive load, the selected power must be 5 to 10 times greater than the power consumption of the load! (pulse chargers, LED drivers, pulse power supplies, etc.).

If these instructions are not complied with, it is possible for the device to be overloaded and stop functioning, and the warranty will not cover the damage.

Specifications

Technical parameters of Power adapter 15VDC, 6A, 90W, 90~264VAC, 127~370VDC, impulse, GST90A15-P1M

Brand:

MEAN WELL

Output voltage:

15 [VDC]

Output current:

6 [A]

Output power:

90 [W]

Input voltage:

90~264/127~370 [VAC/VDC]

Adapters and chargers kind:

switched-mode

Tips:

5.5x2.5mm (Universal)

Cable length:

1 [m]

Dimensions:

145x60x32 [mm]

Model:

GST90A15-P1M

Adapters and chargers type:

AC-DC

Files

Technical documentation of Power adapter 15VDC, 6A, 90W, 90~264VAC, 127~370VDC, impulse, GST90A15-P1M

Datasheet GST90A15-P1M (EN) PDF, 529.97 KB
