Power adapter 24VDC, 3.75A, 90W, 90~264VAC, switched-mode, GST90A24-P1M

Name: Power adapter 24VDC, 3.75A, 90W, 90~264VAC, switched-mode, GST90A24-P1M
Brand: MEAN WELL
SKU: 101000
Price: 75.65 BGN
Availability: InStock

Power adapter for consumer devices with operating voltage 24 VDC, supply voltage 90-264 VAC and dimensions 5.5 х 2.5 mm.

Manufacturer:

MEAN WELL

Model:

GST90A24-P1M

Individual Warranty:

24 months

Company Waranty:

24 months

Weight:

0.415 Kgs

Availability

Qty

Delivery time

In Stock

48 h

Vikiwat Store

shop purchase

In stock

-15%

online

BGN 75.65 VAT Incl.

~~BGN 89.00~~ VAT Incl.

The offer is valid from 25.12.2024 to 25.12.2024

Prices for quantities (VAT Incl.)

Quantity	1+	3+	5+	10+
Price	BGN 75.65	BGN 71.87	BGN 68.09	BGN 64.30
List Price	~~BGN 89.00~~	~~BGN 84.55~~	~~BGN 80.10~~	~~BGN 75.65~~

SKU: 101000

Description Specifications Files Reviews

Description

Universal adapter

To properly select the power of the device, it is advisable to consult a specialist. The power must be based on the power of the consumers and the type of load:

The nominal power of the device must be 20-30% higher than the load capacity of the consumer at an active load (heaters, electric ovens, furnaces, stoves, incandescent lamps, etc.). This is due to the high starting current of the loads. When the load is switched on and during repeated short-time modes, the load over a short period significantly exceeds the nominal parameters specified in the load characteristics.

When the device is used in conjunction with inductive load consumers, the power must be 3 to 5 times the power consumption of the load! (fluorescent lighting, electric motors, pumps, air conditioners, refrigerators and freezers, etc.).

When the device is used for consumers with a capacitive load, the selected power must be 5 to 10 times greater than the power consumption of the load! (pulse chargers, LED drivers, pulse power supplies, etc.).

If these instructions are not complied with, it is possible for the device to be overloaded and stop functioning, and the warranty will not cover the damage.

Specifications

Technical parameters of Power adapter 24VDC, 3.75A, 90W, 90~264VAC, switched-mode, GST90A24-P1M

Brand:

MEAN WELL

Output voltage:

24 [VDC]

Output current:

3.75 [A]

Output power:

90 [W]

Input voltage:

90~264 [VAC]

Adapters and chargers kind:

switched-mode

Tips:

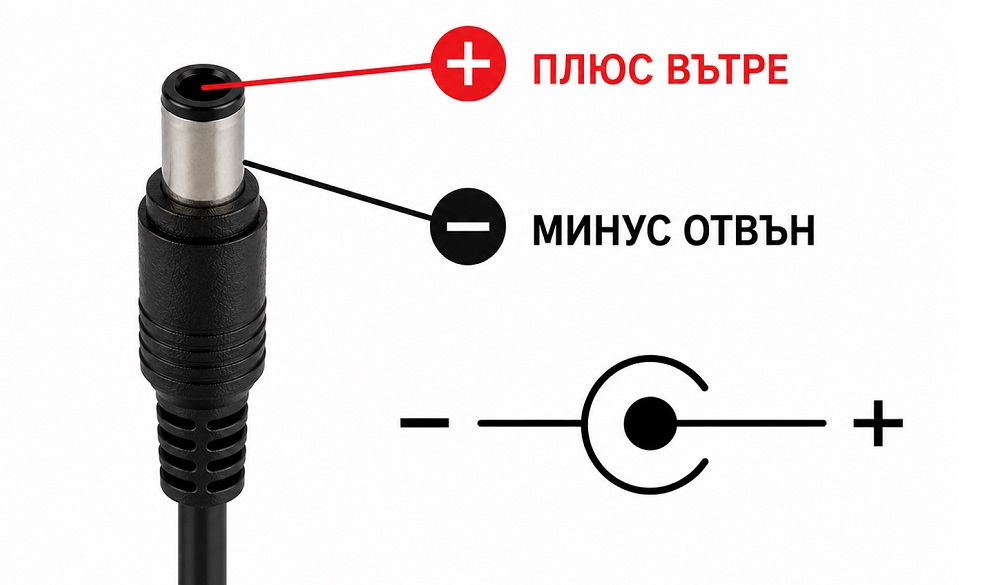

5.5x2.5mm (Universal)

Cable length:

1.2 [m]

Dimensions:

145x60x32 [mm]

Model:

GST90A24-P1M

Adapters and chargers type:

AC-DC

Files

Technical documentation of Power adapter 24VDC, 3.75A, 90W, 90~264VAC, switched-mode, GST90A24-P1M

Datasheet (EN) PDF, 502.43 KB
