Power adapter 5VDC, 2.4A, 12W, 90~264VAC, 135~370VDC, impulse, GS15B-1P1J

Name: Power adapter 5VDC, 2.4A, 12W, 90~264VAC, 135~370VDC, impulse, GS15B-1P1J
Brand: MEAN WELL
SKU: 110128
Price: 57.20 BGN
Availability: OutOfStock

Power adapter 5VDC, 2.4A, 12W, 90~264VAC, 135~370VDC, impulse - 2

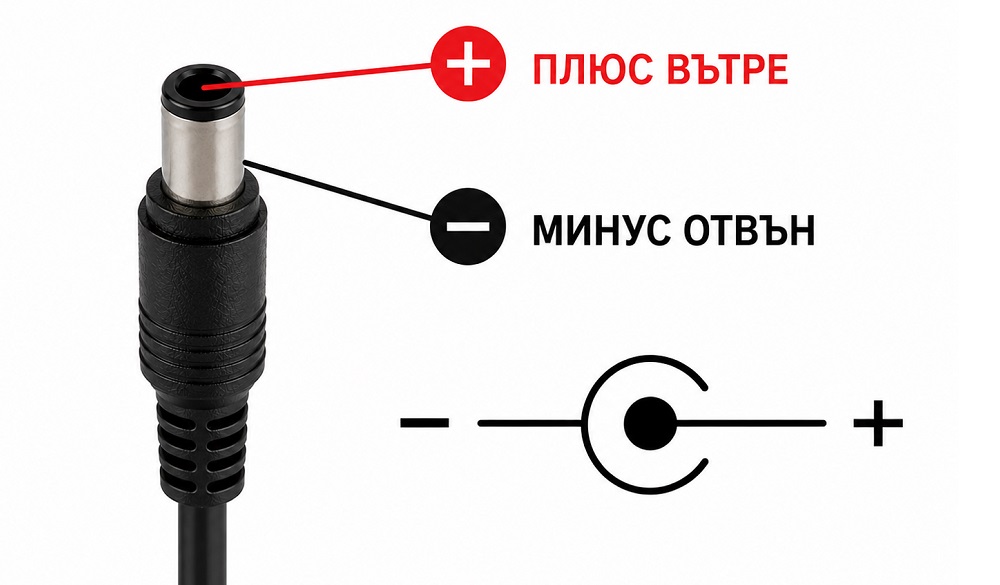

Adapter for power supply of consumers with operating voltage 5 VDC. Supply voltage of the adapter 90~264 VAC / 135~370 VDC with connector dimensions 5.5 x 2.1 mm and cable length 1.2 m.

Manufacturer:

MEAN WELL

Model:

GS15B-1P1J

Individual Warranty:

24 months

Company Waranty:

24 months

Weight:

0.205 Kgs

Availability

Qty

Delivery time

Vikiwat Store

shop purchase

Out of stock

BGN 57.20 VAT Incl.

Notify me when available

Notify me when the product is available

SKU: 110128

Description Specifications Files Reviews

Description

Universal adapter

To properly select the power of the device, it is advisable to consult a specialist. The power must be based on the power of the consumers and the type of load:

The nominal power of the device must be 20-30% higher than the load capacity of the consumer at an active load (heaters, electric ovens, furnaces, stoves, incandescent lamps, etc.). This is due to the high starting current of the loads. When the load is switched on and during repeated short-time modes, the load over a short period significantly exceeds the nominal parameters specified in the load characteristics.

When the device is used in conjunction with inductive load consumers, the power must be 3 to 5 times the power consumption of the load! (fluorescent lighting, electric motors, pumps, air conditioners, refrigerators and freezers, etc.).

When the device is used for consumers with a capacitive load, the selected power must be 5 to 10 times greater than the power consumption of the load! (pulse chargers, LED drivers, pulse power supplies, etc.).

If these instructions are not complied with, it is possible for the device to be overloaded and stop functioning, and the warranty will not cover the damage.

Specifications

Technical parameters of Power adapter 5VDC, 2.4A, 12W, 90~264VAC, 135~370VDC, impulse, GS15B-1P1J

Brand:

MEAN WELL

Output voltage:

5 [VDC]

Output current:

2.4 [A]

Output power:

12 [W]

Input voltage:

90~264/135~370 [VAC/VDC]

Adapters and chargers kind:

switched-mode

Tips:

5.5x2.1mm (HP, Acer, Toshiba, Sega)

Cable length:

1.2 [m]

Dimensions:

100x59x33 [mm]

Model:

GS15B-1P1J

Adapters and chargers type:

AC-DC

Files

Technical documentation of Power adapter 5VDC, 2.4A, 12W, 90~264VAC, 135~370VDC, impulse, GS15B-1P1J

Datasheet MEAN WELL GS15B-1P1J (EN) PDF, 74.83 KB
