Adapter, 6VDC, 1A, 6W, 100-240VAC, 5.5х2.5mm

Name: Adapter, 6VDC, 1A, 6W, 100-240VAC, 5.5х2.5mm
SKU: 94778
Price: 11.90 BGN
Availability: OutOfStock

Adapter, 6VDC, 1A, 6W, 100-240VAC, 5.5х2.5mm
- 1

Adapter, 6VDC, 1A, 6W, 100-240VAC, 5.5х2.5mm
- 2

Adapter, 6VDC, 1A, 6W, 100-240VAC, 5.5х2.5mm
- 3

Adapter 0610 with input voltage from 100 to 240 VAC, output voltage 6 VDC and current 1 A with connector 5.5x2.5 mm.

Model:

0610

Individual Warranty:

24 months

Company Waranty:

12 months

Weight:

0.085 Kgs

Availability

Qty

Delivery time

Vikiwat Store

shop purchase

Out of stock

BGN 11.90 VAT Incl.

Notify me when available

Notify me when the product is available

Prices for quantities (VAT Incl.)

Quantity	1+	3+	5+	10+	20+
List Price	BGN 11.90	BGN 10.71	BGN 10.12	BGN 9.52	BGN 8.33

SKU: 94778

Description Specifications Reviews

Description

Additional information

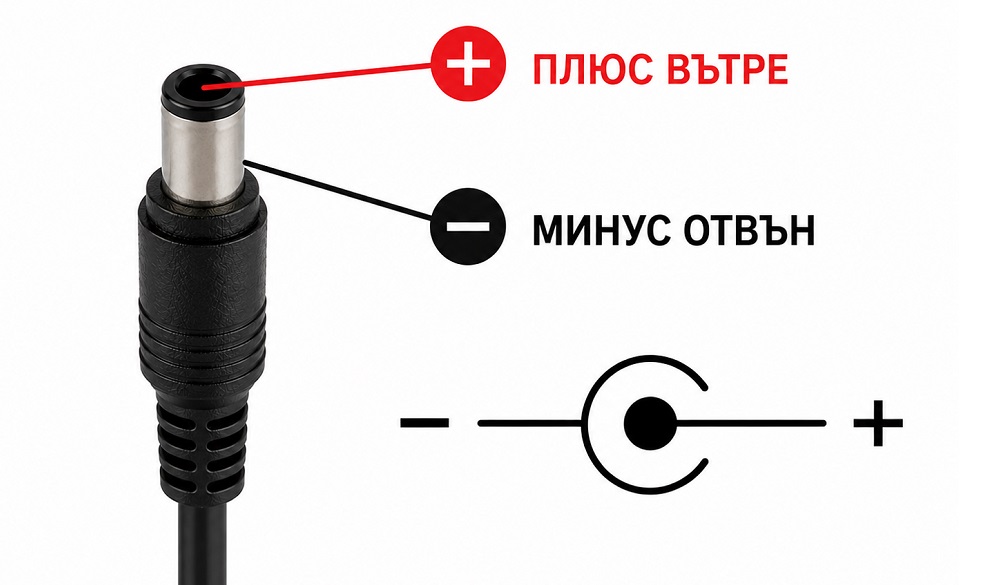

Due to the wide range of input voltage adapter is applicable both in the EU and in the USA. Polarity, "+" is inside the connector.

To properly select the power of the device, it is advisable to consult a specialist. The power must be based on the power of the consumers and the type of load:

The nominal power of the device must be 20-30% higher than the load capacity of the consumer at an active load (heaters, electric ovens, furnaces, stoves, incandescent lamps, etc.). This is due to the high starting current of the loads. When the load is switched on and during repeated short-time modes, the load over a short period significantly exceeds the nominal parameters specified in the load characteristics;

When the device is used in conjunction with inductive load consumers, the power must be 3 to 5 times the power consumption of the load! (fluorescent lighting, electric motors, pumps, air conditioners, refrigerators and freezers, etc.);

When the device is used for consumers with a capacitive load, the selected power must be 5 to 10 times greater than the power consumption of the load! (pulse chargers, LED drivers, pulse power supplies, etc.).

If these instructions are not complied with, it is possible for the device to be overloaded and stop functioning, and the warranty will not cover the damage.

Specifications

Technical parameters of Adapter, 6VDC, 1A, 6W, 100-240VAC, 5.5х2.5mm

Output voltage:

6 [VDC]

Output current:

1 [A]

Output power:

6 [W]

Input voltage:

100~240 [VAC]

Adapters and chargers kind:

stabilized

Tips:

5.5x2.5mm (Universal)

Cable length:

1 [m]

Dimensions:

74x43x28 [mm]

Model:

0610

Adapters and chargers type:

AC-DC
